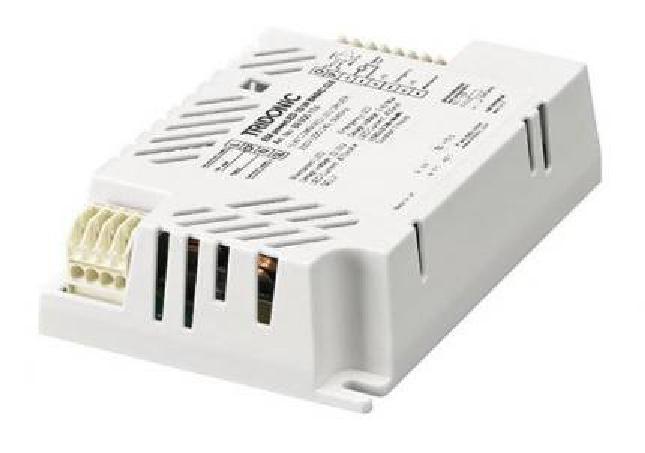

Tridonic emergency light LED-Driver EM powerLED BASIC CLE 12/15 W - 89800526

Tridonic GmbH & Co KG

Tridonic emergency light LED-Driver EM powerLED BASIC CLE 12/15 W - 89800526

Product number: 89800526

Immediately available

€39.28 (23% saved)

€30.11


Content: 1 Stück

Prices incl. VAT plus shipping costs net €25.30

Product information "Tridonic emergency light LED-Driver EM powerLED BASIC CLE 12/15 W - 89800526"

Emergency light LED ECG with 3h rated duration

The constant current LED driver for self-contained emergency lighting EM powerLED BASIC CLE 12/15 W by Tridonic is suitable for luminaire installation. The nominal power is up to 15 Watt. The LED ECG can be used for the application with CLE 1500lm EM.

The emergency light LED driver has an integrated Simple CORRIDOR FUNCTION (CF), an emergency light function for manual testing and a 1 W emergency lighting unit for non-maintained operation. The rated duration is 3 hours.

Charging status display with green LED

In addition, the LED ECG has a green LED for charging status display, an electronic charging system, reverse polarity protection for battery, a deep discharge protection and a short-circuit-proof battery connection.

TRIDONIC offers a 5-year warranty on the emergency light ECG. NiMH high temperature cell batteries are guaranteed for one year with an expected life of 4 years.

Electrical data
operating mode: constant current
rated voltage: 220-240 V
lifetime: 50000 h
Casing
form type: rectangular
max housing temperature (tc-max): 85 °C
protection type: IP20
environment temperature from: -5 °C
environment temperature to: 55 °C
Photometric data
dimming range to: 100 %
color: white
interface: corridor function

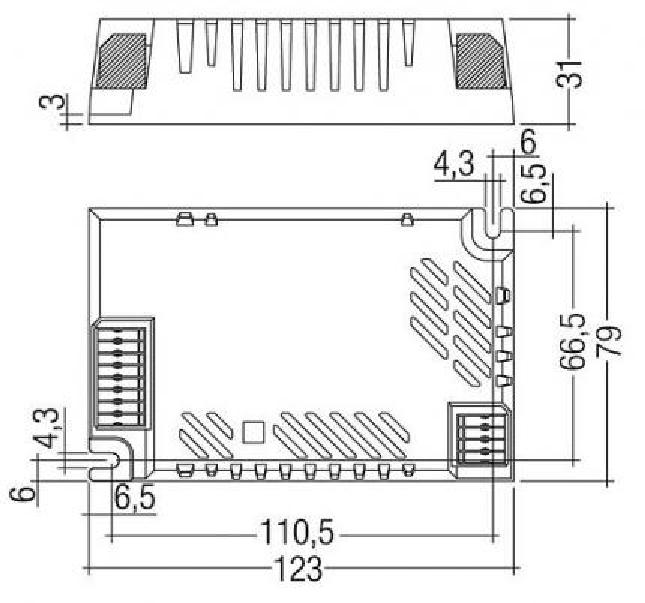

Dimensions & packaging
EAN 9006210609485
Length 111 mm
Width 79 mm
Height 31 mm
