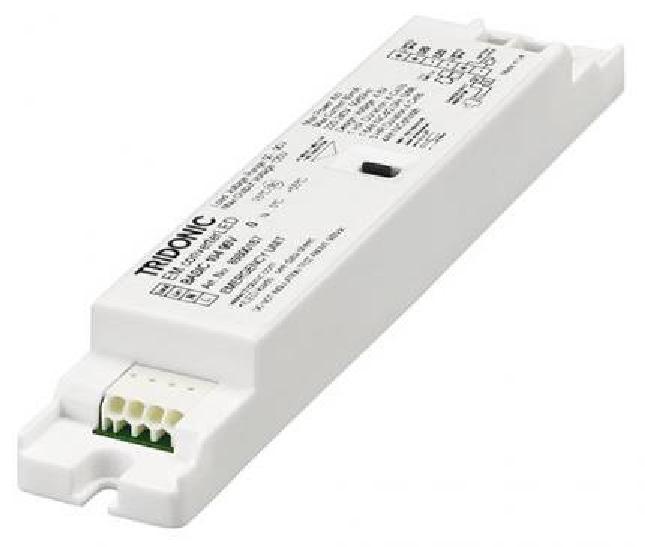

Tridonic EMconverterLED BASIC 135 NICD 90V - 89800189
Tridonic GmbH & Co KG
Tridonic EMconverterLED BASIC 135 NICD 90V - 89800189
Product number:
89800189
Immediately available
€22.80
Content:
1 Stück
Prices incl. VAT plus shipping costs net €19.16
Product information "Tridonic EMconverterLED BASIC 135 NICD 90V - 89800189"
For luminaire installation
1 or 3 h rated duration
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
Low-profile casing (21 x 30 mm cross-section)
NiCd or NiMH batteries
D, Cs or 7/5 Cs cells
Emergency lighting LED Driver for manual testing
Short-circuit-proof battery connection
Electronic charge system
Non maintained operation
Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
3 -pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
Constant power output
Maximum light output for all LED modules
For LED modules with a forward voltage of 50 – 90 V
SELV for output voltage < 120 V DC
Automatic shutdown of output if LED load is out of range
Operating time selectable with plug (duration link)
1 or 3 h rated duration
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
Low-profile casing (21 x 30 mm cross-section)
NiCd or NiMH batteries
D, Cs or 7/5 Cs cells
Emergency lighting LED Driver for manual testing
Short-circuit-proof battery connection
Electronic charge system
Non maintained operation
Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
3 -pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
Constant power output
Maximum light output for all LED modules
For LED modules with a forward voltage of 50 – 90 V
SELV for output voltage < 120 V DC
Automatic shutdown of output if LED load is out of range
Operating time selectable with plug (duration link)
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| environment temperature from: | -5 °C |
| environment temperature to: | 55 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| color: | white |
| solar panel: | no |

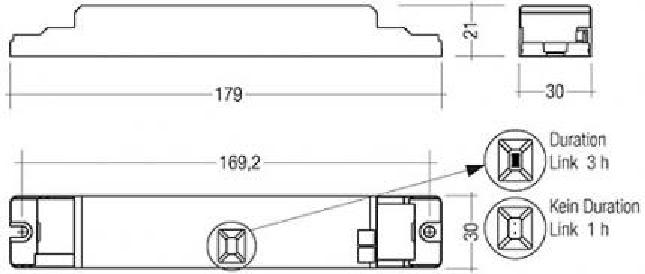

Dimensions & packaging
| EAN | 9006210466446 |
|---|---|
| Length | 179 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 77 g |
