Tridonic Accu-NiMH 2.2Ah 3A - 28002088
Product information "Tridonic Accu-NiMH 2.2Ah 3A - 28002088"
High temperature NiMH cells with 2.2 Ah and 3A
The 2.2 Ah and 3A high temperature NiMH cells from TRIDONIC are suitable for use with emergency lighting equipment in accordance with standard IEC 60598-2-22. They are completely cadmium free. The NiMH cells convince with good charging properties at high temperature and high energy maintenance of the charged battery. Constant high-temperature operation depends on the emergency light unit used (see corresponding emergency control gear data sheet).
Simple connection via blade terminal

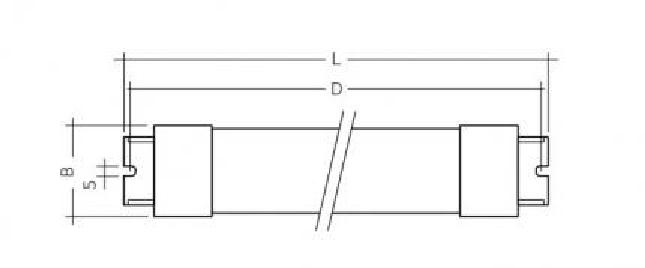

The "low profile" housing has a cross section of 23 mm (without end caps). The connection is easily made with a blade terminal. In addition, the battery has mounting caps made of polycarbonate and connecting cables. Electrical connection with mounted end caps is possible.
The NiMH cells have an expected lifetime of 4 years and 1 year warranty.
Downloads & Documents
Sicherheitsdatenblatt-TRIDONIC-Accu-NiMH-2-2Ah-3A-28002088_1592146830_2
Datasheet-TRIDONIC-Accu-NiMH-2-2Ah-3A-28002088_1592146823_4
Declaration-of-Conformity-TRIDONIC-Accu-NiMH-2-2Ah-3A-28002088_1592146823_6
Safety-Datasheet-TRIDONIC-Accu-NiMH-2-2Ah-3A-28002088_1592146823_8
Datenblatt-TRIDONIC-Accu-NiMH-2-2Ah-3A-28002088_1592146823_9
Electrical data
| through wiring: | no |
|---|---|
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| form type: | linear |
Photometric data
| sensor: | no |
|---|---|
| color: | white |
Dimensions & packaging
| EAN | 9006210638782 |
|---|---|
| Length | 167 mm |
| Width | 28 mm |
| Height | 27 mm |
