TCI Potentiometer REG 1-10V - 123999L
Product information "TCI Potentiometer REG 1-10V - 123999L"

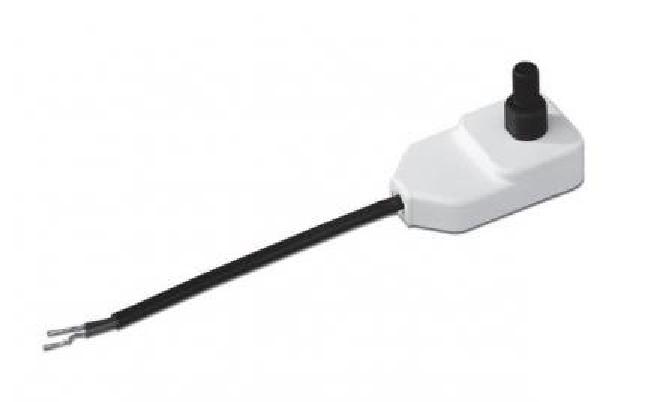

The rotating electronic potentiometer REG 1-10V from TCI is used to control electronic ballasts with 1-10 V interface. With its help, the light intensity can be regulated from 0 - 100%.
The potentiometer is suitable for applications of protection class III. The controlled current must not exceed 10mA ; the controlled voltage is 0.7-12 V.

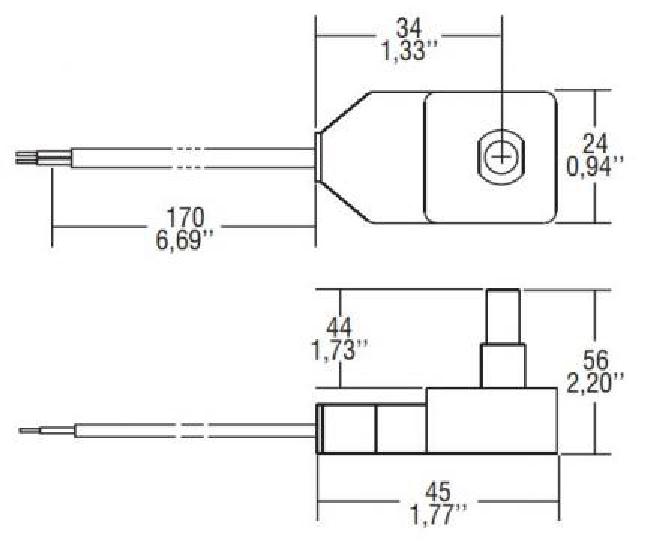

The case is IP20 protected and has small dimensions of 215 x 24 x 56 mm.
TCI offers a 10-year-warranty on the potentiometer.
Below in the cross-selling area, we have listed the suitable operating devices.
Downloads & Documents
Electrical data
| through wiring: | no |
|---|---|
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| protection class: | III |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | 1-10 V |
| sensor type: | no |
| solar panel: | no |
Logistic data
| item category: | installation materials |
|---|
Dimensions & packaging
| EAN | 8010703200241 |
|---|---|
| Length | 24 mm |
| Width | 45 mm |
| Height | 56 mm |
| Weight | 10 g |
