TCI LED-Driver DC MAXI JOLLY US DALI BI - 125464
Product information "TCI LED-Driver DC MAXI JOLLY US DALI BI - 125464"

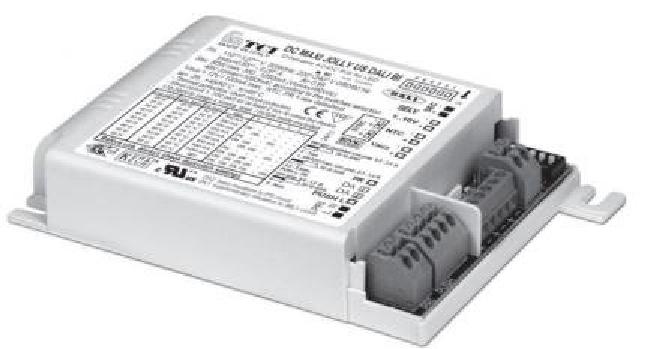

The dimmable electronicballast for LED modules DC MAXI JOLLY US DALI BI from TCI is suitable both forluminaire installation and for independent mounting. It can be used withprotection class I and II lamps. The housing of the LED ECG is IP20 protected.
An active power corrector is integrated.Additionally, the constant current LED driver has a 12 V auxiliary output formax. 100 mA as well as an analogical input for a thermal sensor.
With the help of a dip switch,the constant current can be adjusted. The current control is + - 5% includingtemperature fluctuations.
Dimming is possible via a PushDIMinterface, a 1-10 V interface or a DALI interface.
The input and output terminalblocks are on the same side (wire cross-section up to 2.5 mm2 / AWG13). The clampingscrews on primary and secondary circuits for cables have a minimum diameter of3 mm up to a maximum of 8 mm.
The TCI DC MAXI JOLLY US DALI BIis protected against overheating and short circuits, mains voltage spikes andoverload. In addition, it has an automatic resetting thermal protectionaccording to EN 61347 C.5. a.
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 110-127 V |
| terminal type: | Push-in CAGE CLAMP® |
| conformity: | CE, ENEC |
| system power: | 25 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | 1-10 V |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

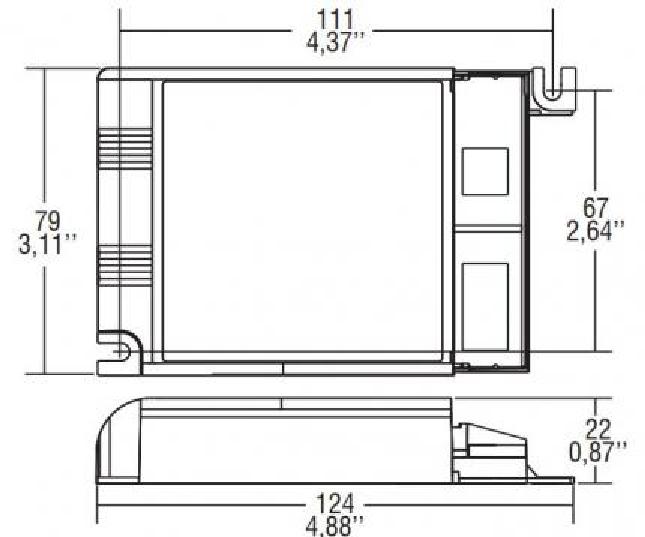

Dimensions & packaging
| EAN | 8010703328648 |
|---|---|
| Length | 79 mm |
| Width | 124 mm |
| Height | 22 mm |
| Weight | 190 g |
