TCI LED-Driver DC Jolly Slim - 123680
Product information "TCI LED-Driver DC Jolly Slim - 123680"

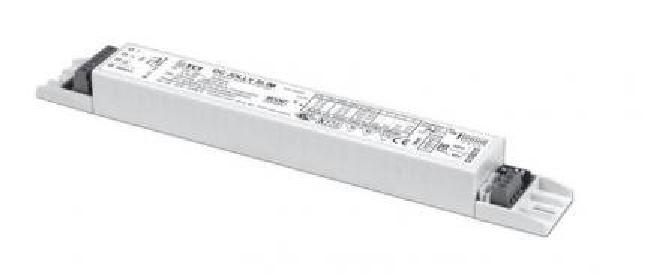

The dimmable electronic ballast for LED modules DC Jolly Slim from TCI is suitable for installation in Class I luminaires. The housing of the constant current constant voltage driver is equipped with IP20 protection. The rated power is up to 32 watts.
An active power factor corrector is integrated. A dip switch can be used to adjust the output current of the LED driver. The current control is + - 5% including temperature fluctuations.
Dimming is possible via a PushDIM interface or a 1-10 V interface.
The input and output terminals are mounted on opposite sides (wire cross-section up to 1.5 mm2 / AWG15).
The TCI LED driver DC Jolly Slim is protected against overheating and short circuits, mains voltage spikes and overloads. The lifetime is 50,000 hours. TCI offers a 7 year warranty on the LED ECG.
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
| system power: | 13 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | PushDIM |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

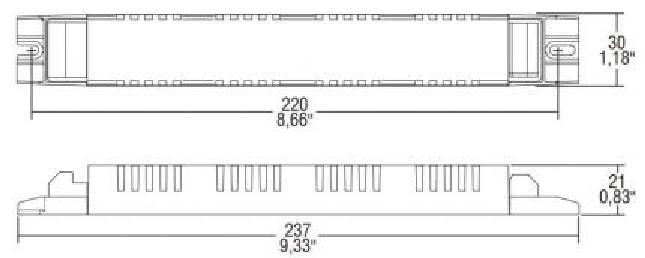

Dimensions & packaging
| EAN | 8010703319820 |
|---|---|
| Length | 30 mm |
| Width | 237 mm |
| Height | 21 mm |
