Constant current/voltage ECG with CASMABI

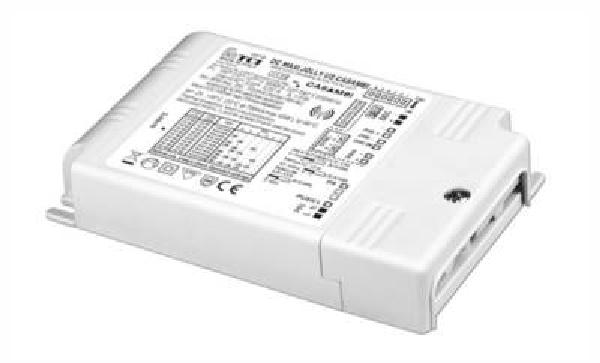

TCI's IP20-protected constant current LED driver DC MAXI JOLLY SV CASAMBI is suitable for luminaire installation or independent installation indoors. Its protection class II prevents electric shocks in direct or indirect contact. The LED driver has a nominal output of up to 50 watts.

The highlight : A CASAMI radio receiver is integrated for your individual lighting control. Via the CASAMBI app you can easily control your lighting via smartphone. Additionally, the LED ECG has DIP switches for selecting the output current.

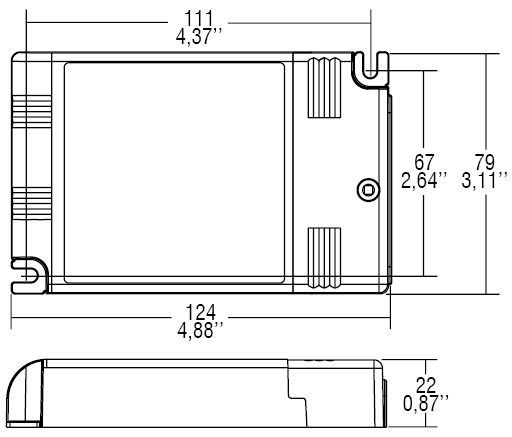

The input and output terminals are located on the same side (wire cross-section up to 2.5 mm2 / AWG13). Clamping screws for cables with a minimum diameter of 3 mm to a maximum of 8 mm are mounted on the primary and secondary circuits.

Active Power Factor Corrector integrated

The TCI LED ECG has an Active Power Factor Corrector. In addition, an analog input for a thermal sensor and a 12 V auxiliary output for a maximum of 100 mA are integrated. The current regulation including temperature fluctuations is + - 5%.

The constant current LED driver DC MAXI JOLLY SV CASAMBI is protected against overheating and short circuits, mains voltage spikes and overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5. a.

Download the CASAMBI app for iOS  and Android  here!

Here you will also find the link for control via AppleWatch via iOS.
