Lunatone Light Management 0-10V - DALI Converter 10mA Min - 10-100% - 86468352-110
Lunatone Light Management 0-10V - DALI Converter 10mA Min - 10-100% - 86468352-110
Shipping in 14 day(s)
€57.12
Prices incl. VAT plus shipping costs net €48.00
Product information "Lunatone Light Management 0-10V - DALI Converter 10mA Min - 10-100% - 86468352-110"

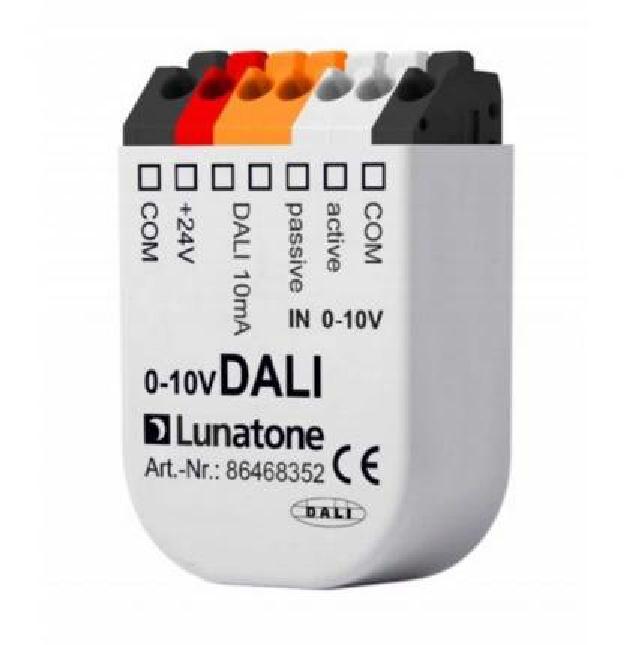

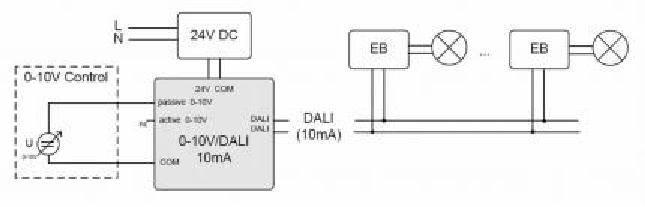

Lunatone’s compact DALI interface module converts 0-10V signals into DALI dim levels. The module provides a DALI power supply for a small DALI subnet with up to 4 standard DALI ballasts (10mA). With the aid of a DALI expander, up to 64 loads can be controlled.

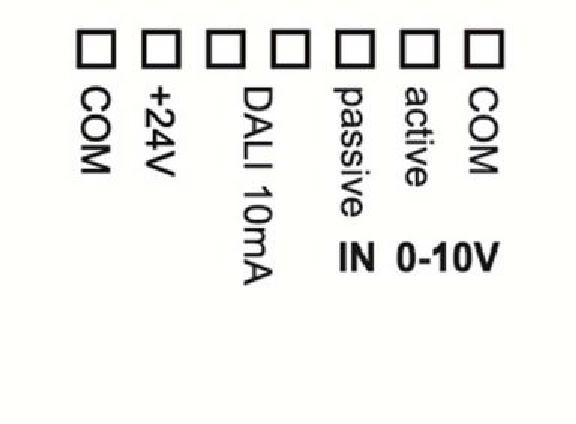

The DALI converter has a passive and active 0-10V input. The converted 0-10V voltage is sent broadcast to the DALI subnet. A change in the 0-10V input voltage (> 1%) is used as trigger event. The dimming range is 10-100%.
The Lunatone DALI interface module is supplied by a 12-24V power supply. By inserting a DALI expander, galvanic isolation between the ECGs connected to the DALI output (10mA) and the 0-10V signal input (and the 24V supply input) can be achieved.
Downloads & Documents
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 12-24 V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

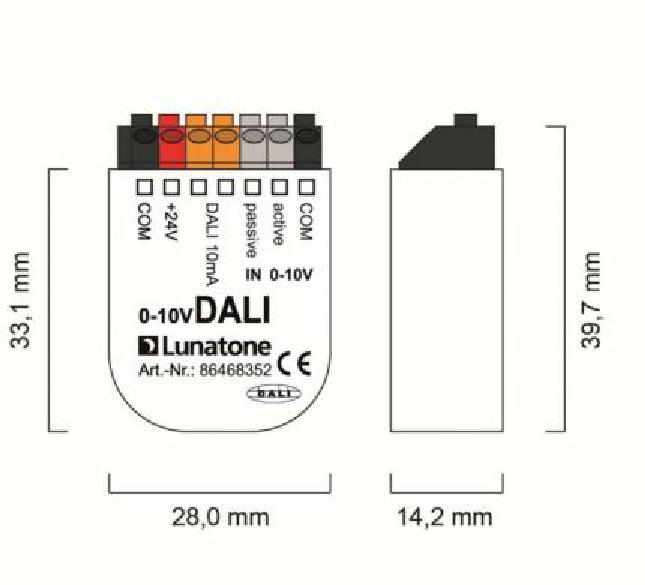

Dimensions & packaging
| EAN | 9010342010590 |
|---|---|
| Length | 40 mm |
| Width | 28 mm |
| Height | 15 mm |
| Weight | 11 g |
