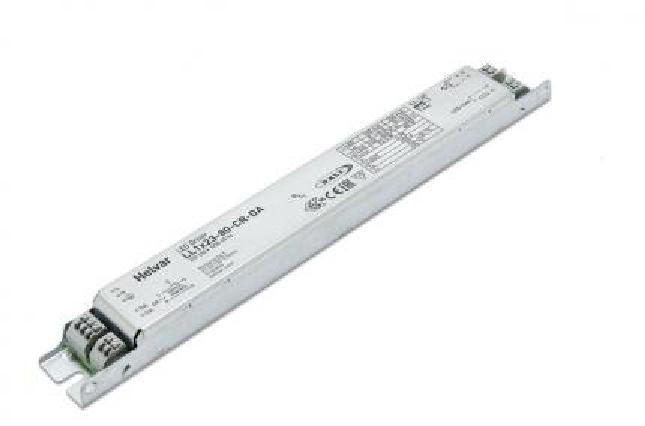

Helvar LED-Driver LL1x23-80-CR-DA - 5723001
Product information "Helvar LED-Driver LL1x23-80-CR-DA - 5723001"
DALI-2 dimmable LED ECG with up to 80 W
The DALI-2 constant current LED driver LL1x23-80-CR-DA from Helvar is suitable for installation in closed luminaires where protection is provided by the luminaire construction (Class I or II). The driver itself has Class I. It has a nominal power of up to 80 watts and a high efficiency of up to 95%. It is also suitable for DC operation. The LED ECG can be dimmed within a range of 1-100% via its DALI-2 interface. The output current is adjustable between 150 mA (default) and 350 mA.
Very low flicker output (IEEE 1789 standard)
The LED driver complies with the IEEE 1789 standard due to its very low flicker output. It is suitable for flicker-free camera recording applications. The latest Switch Control 2 functionality ensures user-friendly intensity control. In addition, the Helvar LED ECG has integrated power monitoring (real time), Running hour monitor (accumulative) and energy management (accumulative).
The LED ECG has an adaptive overload protection, which reduces the output current if minor overload (up to 85 W) is detected, and a constant lumen output (CLO), adjustable up to 100,000 h (default setting: deactivated). In addition, the LED driver has a full load detection with automatic recovery, no-load and short-circuit protection. The long life of the LED driver is up to 100,000 Hours.
Downloads & Documents
Datasheet-Helvar-LED-Driver-LL1x23-80-CR-DA-5555004_1592173329_1
ENEC-Zertifikat-Helvar-LED-Treiber-LL1x23-80-CR-DA-5555004_1592173329_4
ENEC-Certificate-Helvar-LED-Driver-LL1x23-80-CR-DA-5555004_1592173329_5
CE-Zertifikat-Helvar-LED-Treiber-LL1x23-80-CR-DA-5555004_1592173324_6
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 60000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | DALI |
Logistic data
| item category: | LED drivers |
|---|

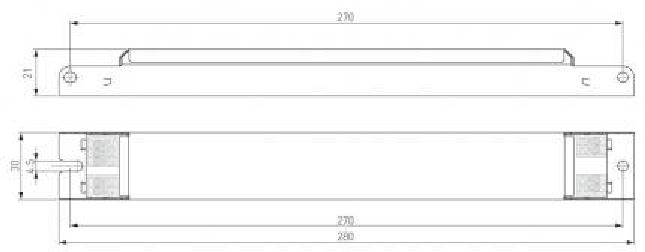

Dimensions & packaging
| Length | 280 mm |
|---|---|
| Width | 30 mm |
| Height | 21 mm |
