Helvar FL EL1X54sc 220-240V 50-60 - 4890000

Helvar Oy AB

Helvar FL EL1X54sc 220-240V 50-60 - 4890000

Product number: 4890000

Shipping in 28 day(s)

€79.61


Content: 1 Stück

Prices incl. VAT plus shipping costs net €66.90

Product information "Helvar FL EL1X54sc 220-240V 50-60 - 4890000"

1-10V dimmable 54W FL for T5 lamps

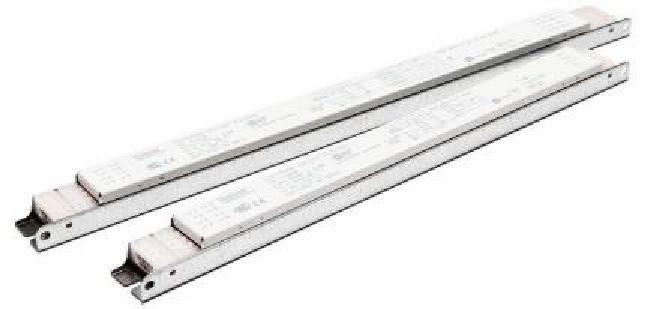

The 1-10 V dimmable electronic ballast EL1X54sc for T5 fluorescent lamps from Helvar is suitable for luminaire installation. It has a nominal power of 54 watts and convinces with a stabilized, flicker-free light output and a very low standby power. The dimming range is between 1 and 100%.

The FL only has a height of 21 mm and offers standard as well as sidemount options. In addition, it is very user-friendly thanks to a quick-release connector.

Microprocessor for energy savings and quality

The controllable Helvar ballasts are controlled by state-of-the-art microprocessors that ensure energy savings, quality and lighting comfort. The OCC technology ensures the highest possible energy class EEI = A1BAT.

The EL-sc series has a multi-control function, which makes dimming possible via an analog 1-10 VDC signal or via contact closure (switch control). The method is unique in that both dimming methods are used which allows a high degree of flexibility in the lighting design.

Electrical data
number of channels: 1
energy efficiency index: A1
rated voltage: 220-240 V
lifetime: 50000 h
Casing
form type: linear
max housing temperature (tc-max): 80 °C
mounting: Installation
environment temperature from: 10 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
dimming range to: 100 %
dimming range from: 1 %
color: white
lamp type: T5
interface: 1-10 V
Logistic data
item category: electronic ballasts

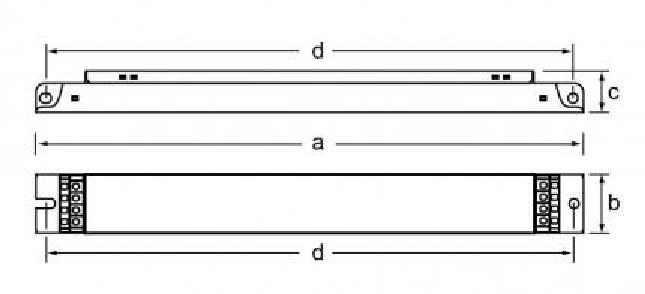

Dimensions & packaging
EAN 6410040212969
Length 360 mm
Width 30 mm
Height 21 mm
