Product information "Casambi PWM Dimmer CBU-PWM4 Constant Voltage 12 / 24VDC - 72 / 144Watt - CBU-PWM4"
4-channel Bluetooth 4.0 PWM dimmer
The CBU-PWM4 is a Bluetooth 4.0 controllable CASAMBI four-channel PWM dimmer for constant-voltage applications. It is suitable for 12-24V constant-voltage LED loads such as LED tapes and LED modules.

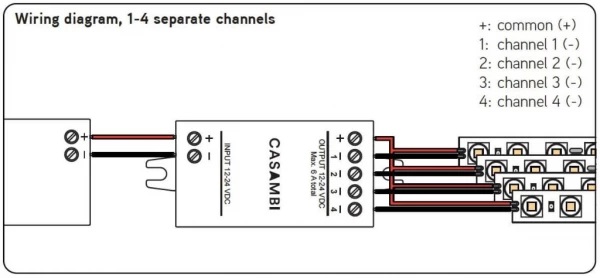

The CASAMBI dimmer has 4 channels with max. 6A output current and 12-24V VDC (input voltage = output voltage). The rated power is 72 - 144 W. The applied dimming method is PWM (pulse width modulation).
Once you have connected the constant voltage supply and the PWM4 to your LED applications and merged them into a network via the free CASAMBI app (Android + iOS), the devices form a continuous mesh based on the broad, energy-saving standard Bluetooth 4.0. As soon a luminaire is in the vicinity, you can control all luminaires. You do not need a central controller nearby.

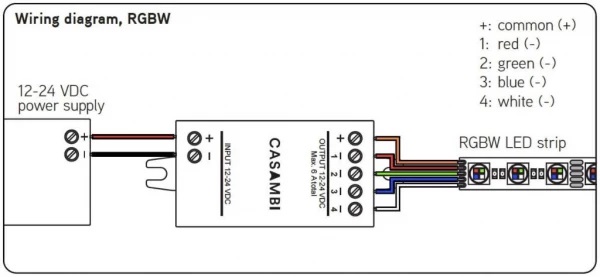

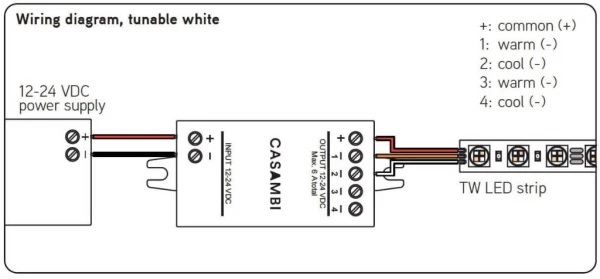

Via the app, you can for example turn the entire lighting or individual luminaires on and off, adjust the light color (warm-white) or RGBW, create groups or call scenes. An additional feature: Use the app to take a photo of your room / rooms and tag the lights. As soon as you tap the lights in the app, the light turns on.
Human Centric Lighting for enhanced well-being
Daylight-dependent control of the light, also called circadian light control, is also possible via the Casambi app. Using the appropriate luminaires, the respective rhythm can be selected by a quick and easy adjustment which makes the lighting imitate the natural course of sunlight : an ideal solution for halls and offices with low daylight or multi-layered industries.
Circadian light control - also known as human centric lighting (HCL) - strengthens the ability of employees to concentrate, thus improving their work results, and ensures healthier employees and fewer accidents.
Downloads & Documents
Casambi-Lichtsteuerung-Verdrahtung-LED-Tape-Tunable-White-Weiss-Weiss-PWM4_1592162486_4
Datasheet_Casambi_CBU_PWM4_Installation_Guide_1592162486_5
Casambi-Lichtsteuerung-Verdrahtung-klassische-Gluehlampe-Niedervolt-Halogen-CBU-TED_1592162486_6
CBU-ASD-Installation-Guide-v18
Electrical data
| number of channels: | 4 |
|---|---|
| rated voltage: | 12-24 V |
| conformity: | CE |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 75 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| color: | white |
Logistic data
| item category: | light management |
|---|

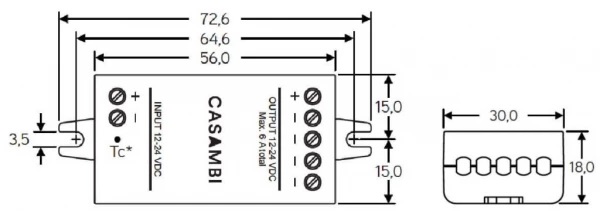

Dimensions & packaging
| Length | 73 mm |
|---|---|
| Width | 30 mm |
| Height | 18 mm |
| Weight | 23 g |
