WAGO Terminal Blocks

Connection technology for professional electrical installation

WAGO has stood for innovative connection technology in electrical installation for over 70 years. The German manufacturer's spring-force terminal blocks have made tool-free, safe and reusable conductor connections the standard – from control cabinet construction to building installation and industrial automation.

The range extends from the compact lever-operated WAGO connectors of the 221 and 2273 series to DIN rail terminal blocks for control cabinet construction, through to feed-through terminals and installation terminal blocks. All WAGO terminal blocks are based on the patented CAGE CLAMP technology: spring force instead of screw pressure ensures permanently secure contact for flexible and solid conductors from 0.08 mm² to 95 mm².

At WATT24 you'll find the complete WAGO range for your projects – from individual terminal blocks to bulk packs, immediately available with expert advice.

Comprehensive advice & support
over 10,000 articles in the shop

Shipping in 24 hours
thousands of satisfied customers

KATHRIN BRANDT

Employee Purchasing from Troisdorf

Great advice and friendly service. I was helped immediately and competently with any questions. Gladly again.

OMAR NASER

Office Manager from Frankfurt a.M.

Goods are well packaged and arrive safely, which is important to me. My mail was answered immediately.

RAINER SEIDEL

Master carpenter from Wiesbaden

Had to replace a lamp, but the same was no longer available. Great advice, found a suitable replacement and delivered it quickly.

 WAGO Terminal Blocks at a Glance Tool-free installation: Open lever, insert conductor, close lever – done
Reusable: Conductors can be released and rewired at any time
Universally applicable: For solid and flexible conductors without ferrules
VDE-approved: All WAGO terminal blocks comply with DIN VDE 0603 and international standards
Transparent: Visual inspection of conductor insertion in many series


WAGO Product Categories at WATT24

Lever-operated WAGO Connectors

The classics for fast conductor connections in junction and distribution boxes. The 221 series with lever locks enables tool-free installation and reusability. The compact 2273 series is ideal for confined installation situations. For conductor cross-sections from 0.2 mm² to 6 mm².

DIN Rail Terminal Blocks

For structured wiring in control cabinets on 35 mm DIN rails. From simple feed-through terminals to multi-level terminal blocks. With CAGE CLAMP connection technology for secure contact without maintenance. Available for conductor cross-sections up to 95 mm².

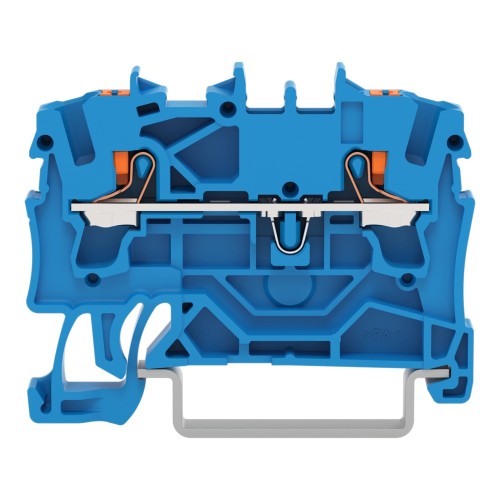

Feed-through Terminals

For continuous wiring without interrupting circuits. Standard terminal blocks for PE, N and L conductors as well as special terminal blocks for measuring and control circuits. Color coding according to DIN for safe identification.

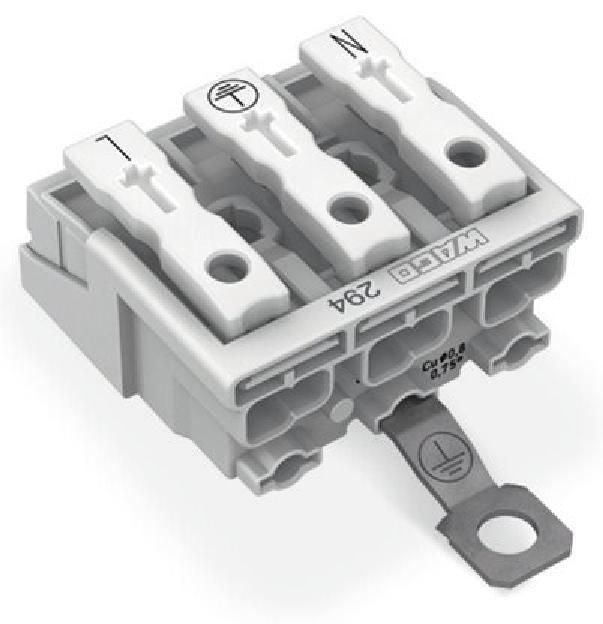

Installation Terminal Blocks

For permanent installation in distribution boards and junction boxes. Robust housings protect against contact and contamination. Ideal for building installation and use in public areas.

Disconnect and Fuse Terminal Blocks

DIN rail terminal blocks with integrated disconnection point for easy interruption of circuits during maintenance work. Fuse terminal blocks with miniature fuse holder for protection of control and measuring circuits.

Push-in Connectors and Junction Box Terminals

Compact solutions for installation and junction boxes. Push-in technology with WAGO COMPACT enables even faster installation without tools. For all common conductor types and cross-sections.

The Most Important WAGO Series Compared

Series	Type	Special Feature	Conductor Cross-section	Typical Application
WAGO 221	Lever-operated connector	Lever lock, transparent	0.2 – 6 mm²	Building installation, distribution boxes
WAGO 2273	Lever-operated connector	Compact design, push-in	0.5 – 2.5 mm²	Confined junction boxes, luminaire connection
WAGO 222	Lever-operated connector	Predecessor of 221 series	0.08 – 4 mm²	Universal for solid and flexible conductors
WAGO 243	DIN rail terminal	Double-deck terminal, space-saving	0.08 – 2.5 mm²	Control cabinet construction with limited space
WAGO 280	DIN rail terminal	Fuse terminal with miniature fuse	0.08 – 4 mm²	Protection of control circuits
WAGO 2001	DIN rail terminal	Compact feed-through terminal	0.08 – 2.5 mm²	Standard wiring control cabinet
WAGO COMPACT	Junction box terminal	Push-in without actuation	0.5 – 6 mm²	Fastest installation in boxes

Application Areas for WAGO Terminal Blocks

Building Installation

WAGO lever-operated connectors have become the standard in junction and distribution boxes. Tool-free installation saves time, transparent housings enable visual inspection of correct conductor insertion. Especially in old building renovations with brittle old conductors, WAGO terminal blocks offer more safety than screw-type connectors due to their spring-force technology.

Control Cabinet and Distribution Board Construction

WAGO DIN rail terminal blocks structure the wiring in control cabinets on 35 mm DIN rails. The maintenance-free CAGE CLAMP technology saves retightening of screw terminals. Labeling options and color coding facilitate identification. Multi-level terminal blocks reduce space requirements with high connection density.

Luminaire Connection

The compact 2273 terminals fit into almost any luminaire cover. Flexible cables can be connected securely without ferrules. For LED retrofits, reusability enables easy switching between different control gears.

Industrial Automation

In control cabinets for manufacturing and process automation, WAGO DIN rail terminal blocks prove themselves through vibration resistance and permanently secure contact. Special terminal blocks for sensor, measuring and control cables reduce installation time and error sources.

Temporary Installations and Event Technology

The reusability of WAGO terminal blocks makes them ideal for temporary setups. Conductors can be disconnected and rewired without tools – important for changing configurations at trade fairs, events or construction sites.

Technology: CAGE CLAMP Instead of Screw

The heart of every WAGO terminal block is the patented CAGE CLAMP spring-force technology. Unlike screw terminals, the conductor is not contacted by screw pressure but by a specially shaped spring.

Advantages in practice:

No damage to conductor strands from screw pressure
Consistent contact force throughout the entire service life
No retightening required (maintenance-free)
Vibration-resistant – important in industrial environments
Flexible conductors can be connected without ferrules

Frequently Asked Questions about WAGO Terminal Blocks

How do WAGO lever-lock connectors (221 series) work?

With the 221 series, you open the orange lever, insert the stripped conductor up to the stop and close the lever again. The integrated spring automatically fixes the conductor. To release, simply open the lever again: no tools required. The transparent design enables visual inspection of correct insertion depth.

Which WAGO terminal for which conductor cross-section?

The selection depends on your conductor cross-section: For fine control and signal cables (0.08–0.5 mm²), WAGO DIN rail terminal blocks of the 2000 series are suitable. For standard installation cables (1.5–2.5 mm²), the 221 or 2273 lever-operated connectors are ideal. For thicker cables up to 6 mm², choose the 221 series with larger housings. For main cables in control cabinets up to 95 mm², there are special high-current terminals.

WAGO 221 or 2273 – what's the difference?

The 221 series has lever locks for opening and closing: ideal if you need to rewire frequently or if visual inspection is important to you. The 2273 series is more compact and uses push-in technology: insert conductor, done. However, conductors cannot be released anymore. 2273 is more space-saving, 221 is more flexible and reusable.

Can flexible cables be connected without ferrules?

Yes, this is a core strength of CAGE CLAMP technology. The spring force contacts flexible strands evenly without damaging them. With screw terminals, the fine wires would suffer under screw pressure. Simply twist flexible cables, strip them and insert them into the WAGO terminal – the spring does the rest.

Are WAGO terminal blocks approved for outdoor use and wet rooms?

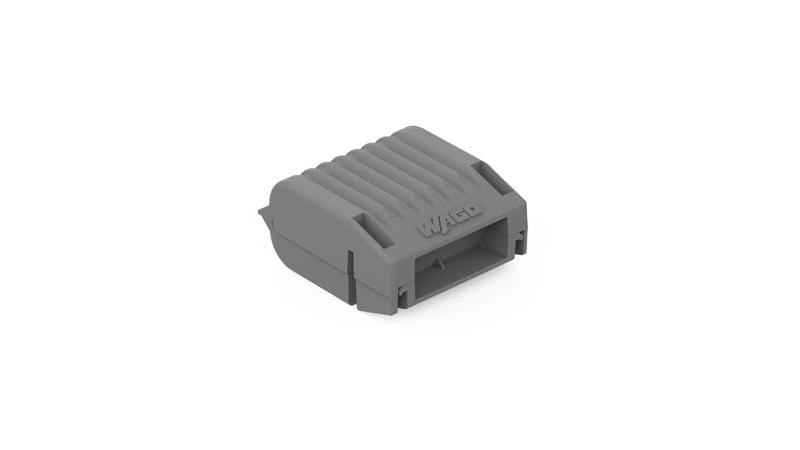

WAGO terminal blocks themselves have protection rating IP20 and are intended for use in enclosed housings. For outdoor areas and wet rooms, the terminals must be installed in appropriately protected housings (at least IP54). There are special WAGO gel boxes with IP68 for buried cable connections. Refer to the respective data sheets for the application area.

Can different conductor cross-sections be connected in one terminal?

Yes, within the approved cross-section range of the respective terminal. A WAGO 221-413 (for 0.2–4 mm²) can, for example, connect a 1.5 mm² conductor with a 2.5 mm² conductor. The spring force adjusts automatically – unlike screw terminals, where different cross-sections can be problematic.

How many switching cycles can WAGO lever-lock connectors withstand?

WAGO specifies at least 100 switching cycles for the 221 series, meaning 100 times of opening, releasing and rewiring. In practice, the terminals often last considerably longer if the conductors are cleanly stripped and not damaged. For permanent installations, this doesn't matter anyway.

Buy WAGO at WATT24

As a specialized B2B electrical wholesaler, we carry a large WAGO range with high availability. From individual terminals for small repairs to bulk packs for your construction projects, you'll find everything in stock with us.

Our team advises you in selecting the right terminals for your application. Whether control cabinet construction, building installation or special projects: we know the technical details and help you save time and money.
