Detection Range

The detection range is the area that is picked up by the sensor and in which it can detect all movements. This always depends on the mounting height and the swivel range. The detection range is usually divided into several zones.

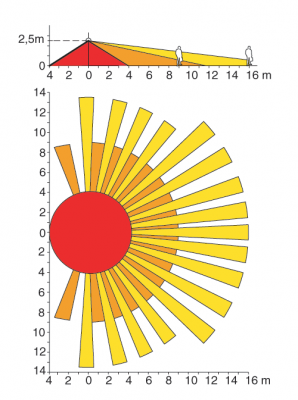

As an example here: The sensor hangs at a height of 2.5m and can therefore detect up to approx. 16m.

Detection range:

• red = inner monitoring zone
• orange = middle monitoring zone
• yellow = outer monitoring zone.
