Product information "Airfal EX-LED-luminaire PYROS LED IP66 70W 10700lm 4000K Zone 1-21 – PY323 – 8435016966965 - PY323"
Efficient EX luminaire for Zone 1-21
The efficient explosion-proof PYROS LED luminaire from Airfal is suitable for use in Zone 1-21. Ideal application areas are explosive atmospheres, areas with combustible gases and areas next to fuel pumps.
The EX luminaire has a nominal output of 70 watts, a luminous flux of 10740 lumens and an efficiency of 153.40 lm / W. With its light color of 4000 K, it provides neutral white light. The length is 1500 mm.
IP66 protection against water and dust
Thanks to its IP66 protection, the LED luminaire is reliably protected against the ingress of water and dust. In addition, it has the impact strength IK10. The housing is made of polycarbonate, has aluminum covers and rugged ATEX cable glands. The Airfal EX-LED light has a lifespan of 50,000 hours.
Downloads & Documents
Datasheet-EX-LED-luminaire-PYRO-LED-IP66-70W-10740lm-4000K-Airfal-PY323_1592171167_7
ATEX-Zertifikat-EX-LED-Leuchte-PYROS-LED-IP66-70W-10740lm-4000K-Airfal-PY323_1592171173_1
Declaration-of-Confirmity-EX-LED-luminaire-PYROS-LED-IP66-70W-10740lm-4000K-Airfal-PY323_1592171173_2
ATEX-Certificate-EX-LED-luminaire-PYROS-LED-IP66-70W-10740lm-4000K-Airfal-PY323_1592171173_3
Mounting-instructions-EX-LED-luminaire-PYRO-LED-IP66-70W-10740lm-4000K-Airfal-PY323_1592171167_5
Login
Electrical data
operating frequency: | 50/60 Hz |
---|---|
operating voltage: | 220-240 V |
through wiring: | no |
rated voltage: | 220-240 V |
conformity: | CE |
lifetime: | 50000 h |
Casing
ex zone: | 1/21 |
---|---|
ballproof: | no |
fire protection: | no |
form type: | linear |
max housing temperature (tc-max): | 85 °C |
protection type: | IP66 |
material: | polycarbonate |
mounting: | surface mounting |
impact resist: | IK10 |
protection class: | I |
environment temperature from: | -20 °C |
environment temperature to: | 40 °C |

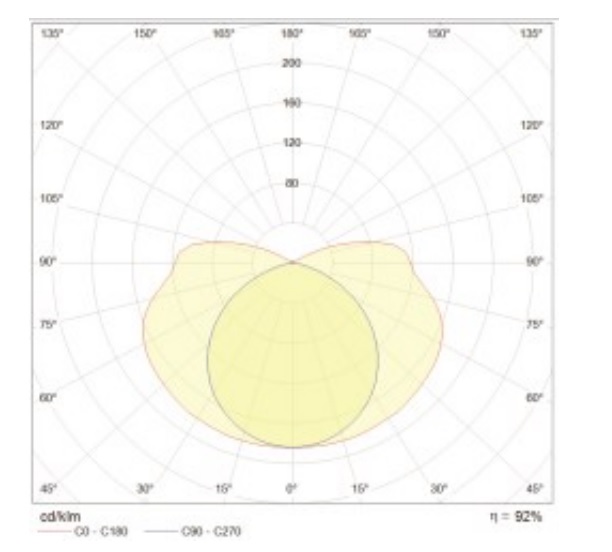

Photometric data
radiation angle: | 119 ° |
---|---|
sensor: | no |
dimmable: | no |
color code: | 840 |
color: | grey |
color temperature [Kelvin]: | 4000 |
color rendering index [CRI]: | >80 |
lamp type: | LED |
inclusive lamp: | yes |
sensor type: | no |
solar panel: | no |
lum flux: | 10740 lm |
Logistic data
item category: | EX-luminaires (ATEX) |
---|---|
country of origin: | Spain |

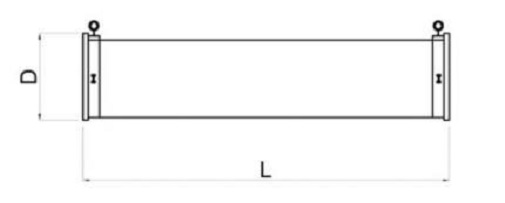

Dimensions & packaging
Length | 1659 mm |
---|---|
Width | 150 mm |
Height | 150 mm |
