Tridonic LED ballast LC 17W 250-700mA flexC SC EXC - 28000705
Tridonic GmbH & Co KG
Tridonic LED ballast LC 17W 250-700mA flexC SC EXC - 28000705
Product number:
28000705
Immediately available
€22.57
(40% saved)
€13.35
Content:
1 Stück
Prices incl. VAT plus shipping costs net €11.22
Product information "Tridonic LED ballast LC 17W 250-700mA flexC SC EXC - 28000705"
- Constant current LED Driver
- Can be either used built-in or independent with clip-on strain-relief (see accessory)
- Adjustable output current between 250 and 700 mA via ready2mains Programmer or I-SELECT 2 plugs
- Max. output power 17 W
- Up to 86 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Interfaces
- ready2mains (configuration via mains)
- Terminal blocks: 45° push terminals
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A++ |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| setting type: | resistors |
| color: | white |
| interface: | ready2mains |
Logistic data
| item category: | LED drivers |
|---|

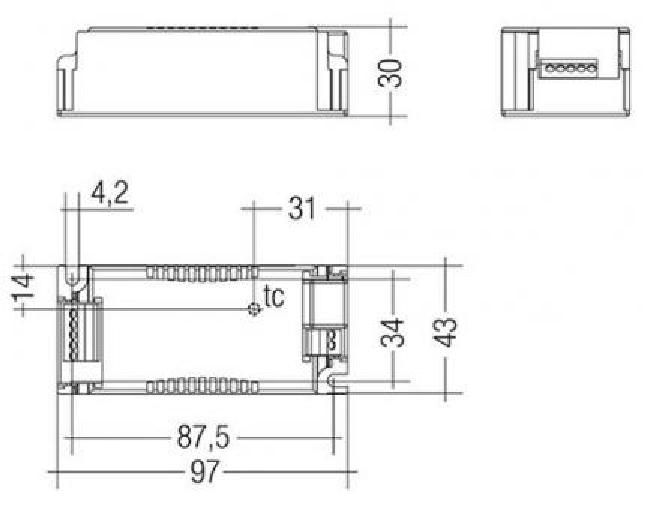

Dimensions & packaging
| EAN | 9006210526096 |
|---|---|
| Length | 97 mm |
| Width | 43 mm |
| Height | 30 mm |
| Weight | 93 g |
