Here we have brought together the most important technical features of the BAG electronics DALI-PWM converter LC-600LS-01 / 220-240 / DALI:The PWM converter has a dual-channel control for dimmable LED modules.

IMPORTANT: The LC600LS-01 / 220-240 / DALI can only be used with Trilux / BAG Astares LED Modules. Also, not more than 5V should be connected.

You can assign the tax outputs individually or collectively.
The control outputs are invertible and have 5V SELV PWM voltage.
The device has a control input: DALI or PUSH Dim.
PUSH-Dim: You can dimming and switching with buttons with or without memory function.
The dimming range is between 1-100% luminous flux (lumen).
You can address the DALI input.
The converter is suitable for DC voltage operation and in emergency lighting systems.
The PWM signal transmits in the 500Hz range (powerless data transfer).

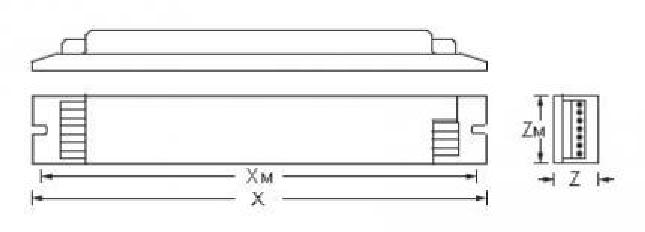

The device is characterized by high design freedom and its very flat and small housing.
A simple installation with push-in terminals with push-button and standard M4 mounting holes is guaranteed.
Compliance with international standards on safety and
Operation, electromagnetic compatibility and noise immunity are also guaranteed.
To reduce the power loss in stand-by mode, the connected LED modules or ECG LEDs are switched off via the integrated relay.
