TCI LED-Driver SIRIO 150/200-700 1-10V BILEVEL - 127225
Product information "TCI LED-Driver SIRIO 150/200-700 1-10V BILEVEL - 127225"
The dimmable electronic ballast for LED modules SIRIO 150 / 200-700 1-10V BILEVEL from TCI is suitable both for luminaire installation and for independent mounting. Its equipment with protection class II prevents electric shocks with direct or indirect contact. It is also IP20 protected.
The constant current LED driver has dip switches that allow you to adjust the output current. The current control is + - 5% including temperature fluctuations. In addition, an active power corrector is integrated. The LED driver has a 12 V auxiliary output for max. 100 mA as well as an analogical input for a thermal sensor.
Dimming is possible via a 1-10 V interface.
The input and output terminal blocks are opposite sides (wire cross-section up to 1.5-2.5 mm2 / AWG15-AWG13). The clamping screws on primary and secondary circuits for cables have a minimum diameter of 3 mm up to a maximum of 8 mm.
The TCI SIRIO 150 / 200-700 1-10V BILEVEL is protected against overheating and short circuits, mains voltage spikes and overload. Additionally, it has an automatic resetting thermal protection according to EN 61347 C.5. a.
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| terminal type: | Push-in CAGE CLAMP® |
| system power: | 150 |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -40 °C |
| environment temperature to: | 55 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| color: | white |
| interface: | 1-10 V |
Logistic data
| item category: | LED drivers |
|---|

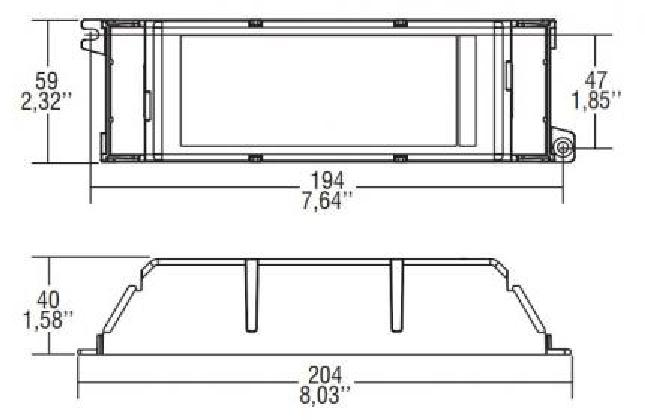

Dimensions & packaging
| EAN | 8010703309920 |
|---|---|
| Length | 204 mm |
| Width | 59 mm |
| Height | 40 mm |
