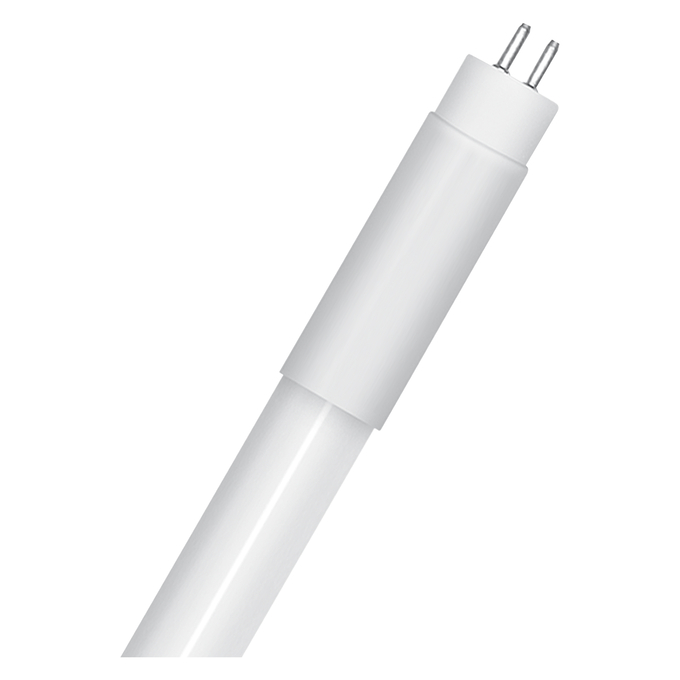

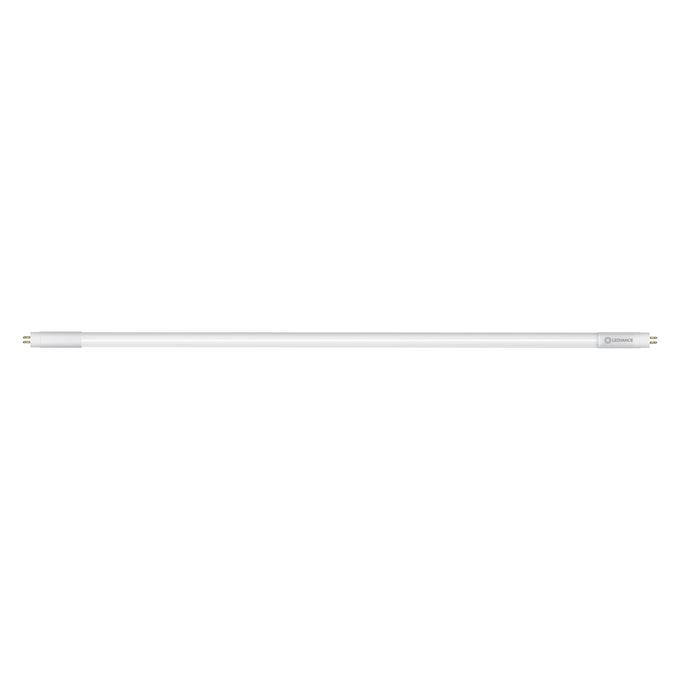

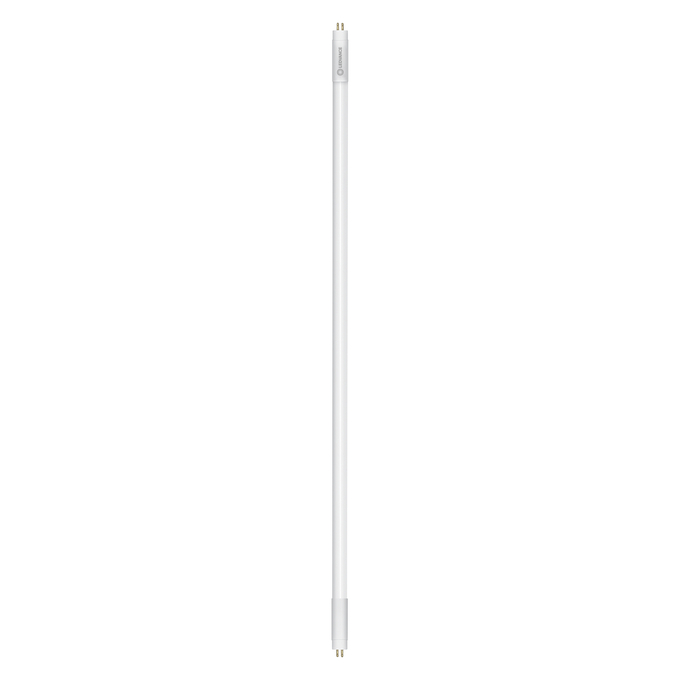

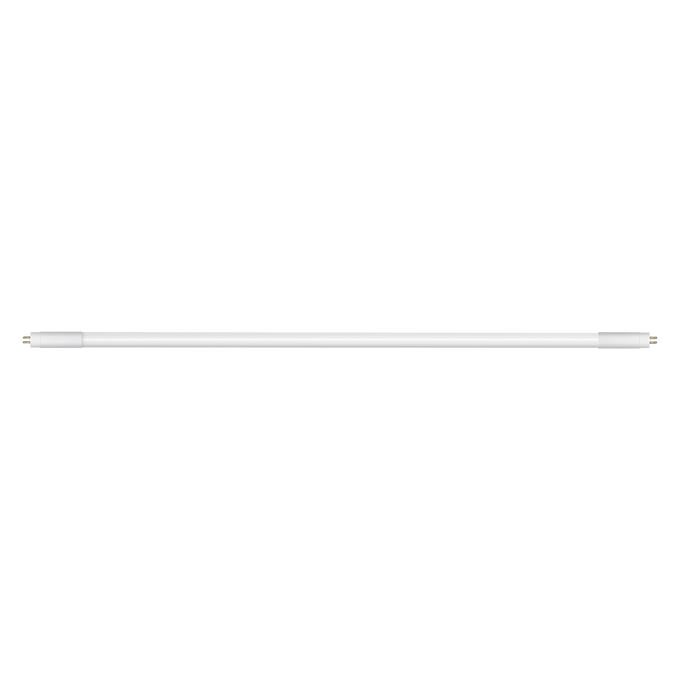

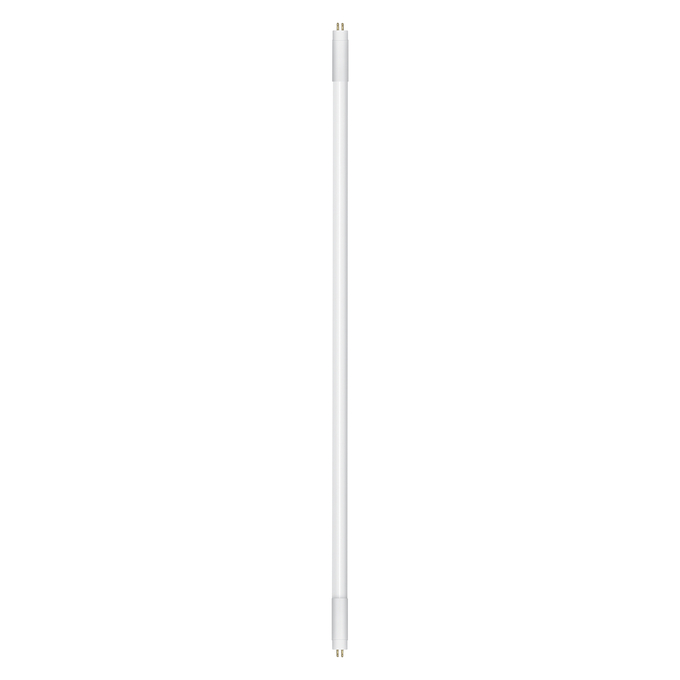

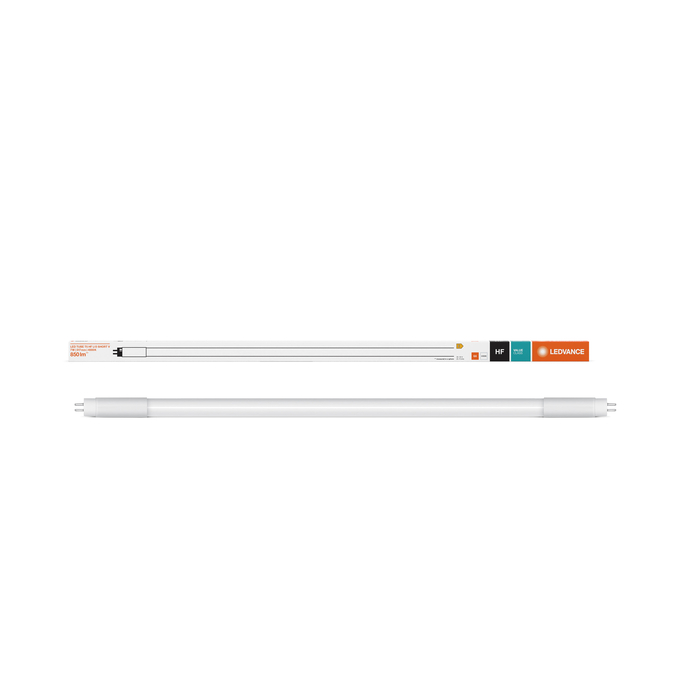

Ledvance LED TUBE T5 HF L13 SHORT VALUE 517 mm 7W 840
Product information "Ledvance LED TUBE T5 HF L13 SHORT VALUE 517 mm 7W 840"
Product benefits:
- No bending thanks to glass technology
- Quick, simple and safe replacement without rewiring
- Also suitable for operation at low temperatures
- Please follow all safety advices
Areas of application:
- General illumination within ambient temperatures from -20…+45 °C
- Public buildings
- Kitchens
- Under-cabinet lighting
Product features:
- Retrofit replacement of existing T5 lamps on HF ballast installations
- Lamp tube made of glass with splinter protection
- High color consistency: ≤ 5 sdcm
- Lifetime up to 30,000 h
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
- Type of protection: IP20
- Compatible with many common electronic control gears (see also compatibility list)
Legal advice:
- When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice:
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- Not suitable for emergency lighting.
