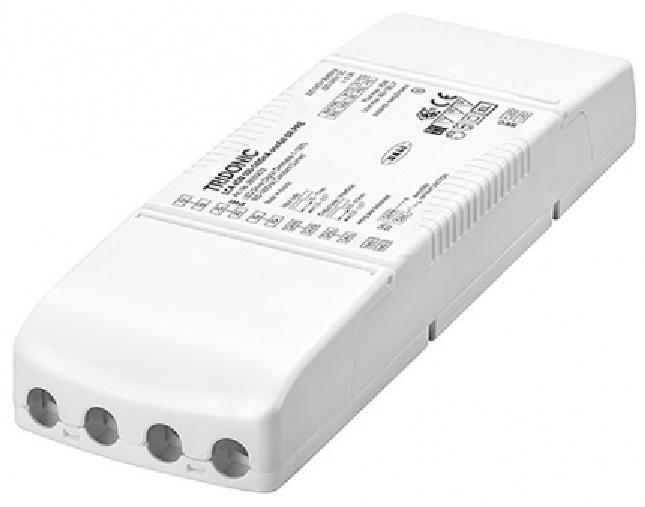

Tridonic LED ECG LCA 45W 500-1400mA one4all SR PRE - 28000672
Tridonic LED ECG LCA 45W 500-1400mA one4all SR PRE - 28000672
Immediately available
€39.90
Prices incl. VAT plus shipping costs net €33.53
Product information "Tridonic LED ECG LCA 45W 500-1400mA one4all SR PRE - 28000672"
With the LED ECG LCA 45W 500-1400mA one4all SR PRE, Tridonic offers an independent dimmable constant current driver for the luminaire installation from its PREMIUM series. The output current is adjustable between 500mA and 1400mA with a maximum output power of 45W. Thanks to the high efficiency of up to 90% and a low power input on stand-by (<0.15 W) you benefit from best energy savings.
The LED ECG is equipped with IP20 protection. It is also suitable for safety lighting systems according to EN50172. The casing is made of white polycarbonate.
For dimming, the driver has an one4all interface (DALI DT6, DSI, switchDIM, corridorFUNCTION). It has a dimming range of 1-100%. The main parameters, such as LED output current, Constant Light Output function (CLO) and DC level, can be configured via the network connection via the ready2mains interface.
The LED driver has an overload protection, short circuit protection, overtemperature protection as well as an open circuit protection and a reduced surge current amplification. The lifetime is up to 100,000 hours. Tridonic offers a 5-year guarantee on the ECG.
An ideal application is linear and area lighting in office applications.
Electrical data
| output current: | 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| setting type: | resistors/programming |
|---|---|
| color: | white |
| interface: | DSI |
Logistic data
| item category: | LED drivers |
|---|

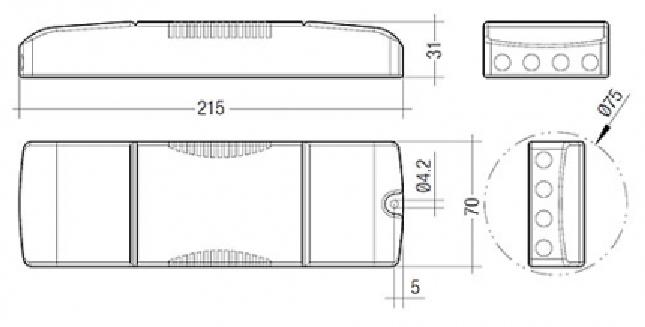

Dimensions & packaging
| EAN | 9006210523781 |
|---|---|
| Length | 215 mm |
| Width | 70 mm |
| Height | 31 mm |
| Weight | 200 g |
