Helvar FL-ECG EL1x18ngn 220-240V 50-60Hz - 4334801
Product information "Helvar FL-ECG EL1x18ngn 220-240V 50-60Hz - 4334801"
18 W FL ECG for T8 lamps

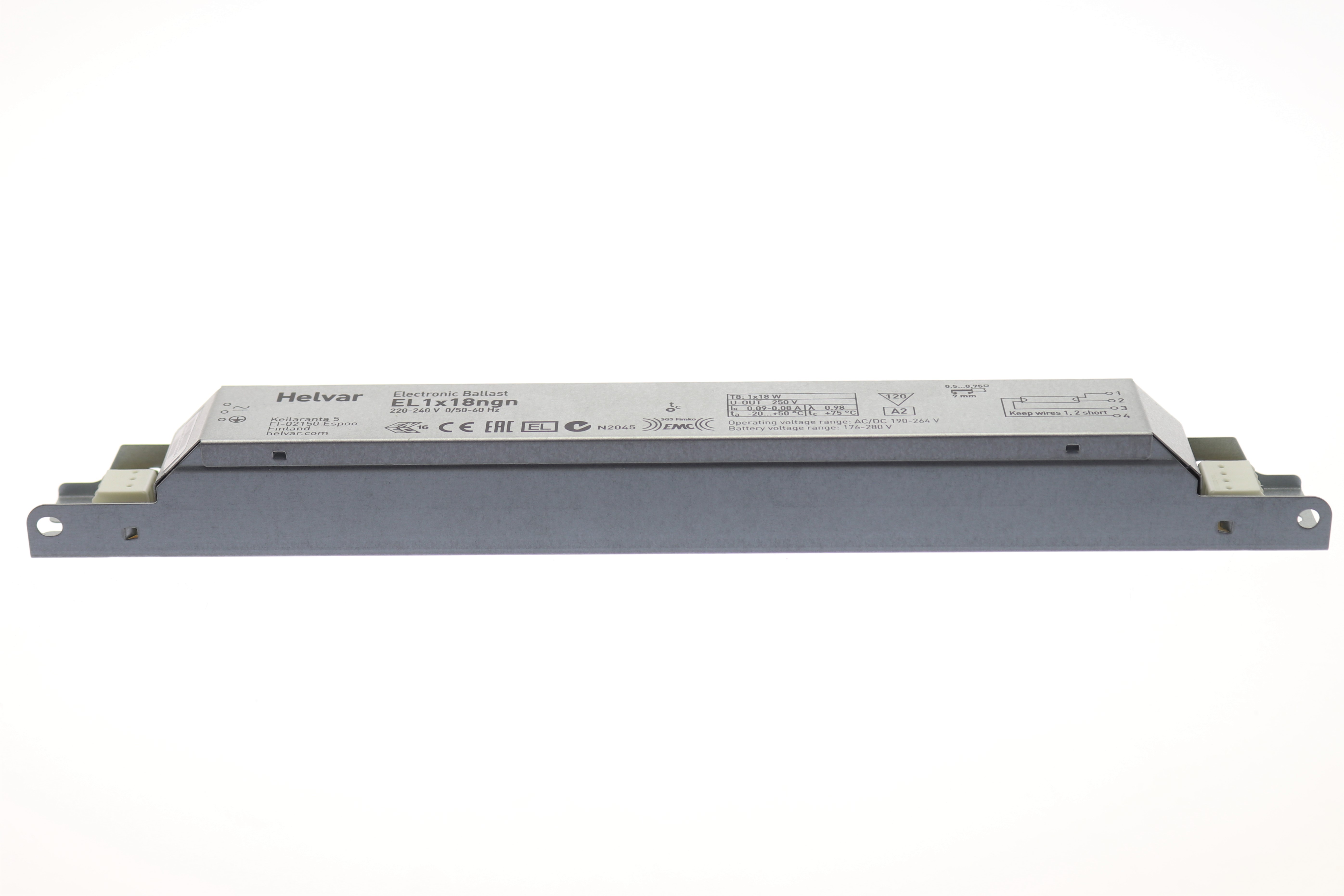

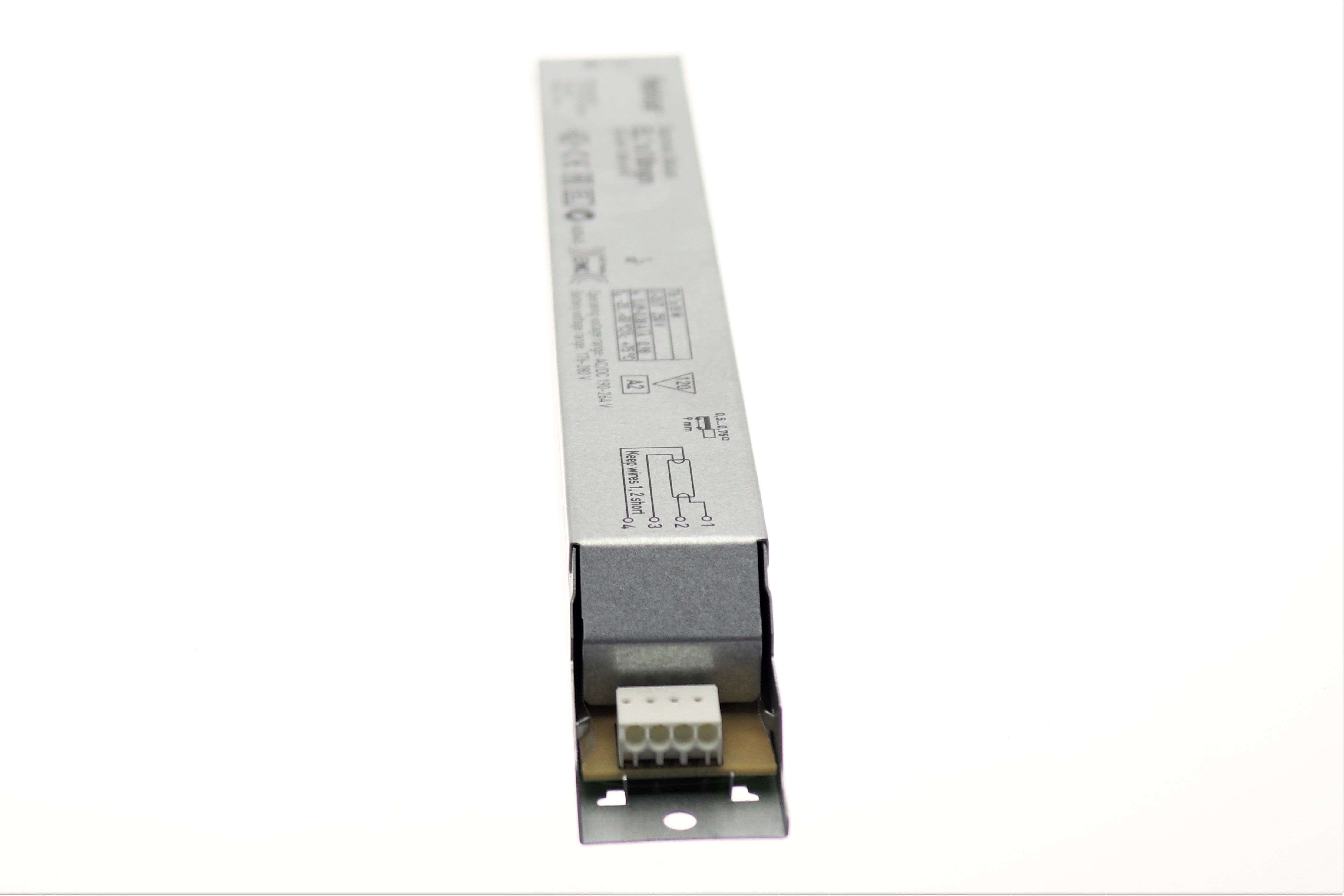

The electronic ballast EL1x18ngn for T8 fluorescent lamps from Helvar is suitable for luminaire installation. It has a maximum rated power of 18 watts. The ballast features an excellent thermal design that delivers the highest energy savings and highest reliability - thus minimizing the impact on the environment. The FL ECG has energy efficiency class A2.
The FL ECG performs a warm start in accordance with lamp standards. It convinces with flicker-free light, low harmonics, low power losses and stabilized power. In addition, it complies with the EMC requirements and has a long life of 60,000 hours.
High quality components and quality design
Helvar uses only high quality components and materials with quality design and associated tests under the toughest conditions when manufacturing its ballasts. No wonder failure rates are among the lowest in the market, exceeding industry expectations tenfold. Helvar's manufacturing processes are also ISO 9001 and ISO 14001 certified.
The EL-ngn series offers highly specialized electronic ballasts for T8 markets, which are among the most user-friendly ballasts. Their proven reliability makes them accepted by the most demanding and quality-conscious OEMs.
Downloads & Documents
CB-Zertifikat-Helvar-FL-EVG-EL1x18ngn-220-240V-50-60Hz-4334801_1592168222_2
ENEC-Zertifikat-Helvar-FL-EVG-EL1x18ngn-220-240V-50-60Hz-4334801_1592168222_3
Datasheet-Helvar-FL-ECG-EL1x18ngn-220-240V-50-60Hz-4334801_1592168222_4
Datenblatt-Helvar-FL-EVG-EL1x18ngn-220-240V-50-60Hz-4334801_1592168222_5
Declaration-of-Confirmity-Helvar-FL-ECG-EL1x18ngn-220-240V-50-60Hz-4334801_1592168216_7
CB-Certificate-Helvar-FL-ECG-EL1x18ngn-220-240V-50-60Hz-4334801_1592168216_9
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 BAT |
| rated voltage: | 220-240 V |
| lifetime: | 60000 h |
| system power: | 18 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| lamp type: | T8 |
Logistic data
| item category: | electronic ballasts |
|---|

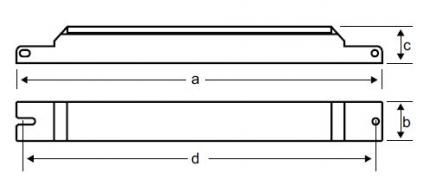

Dimensions & packaging
| EAN | 6410040213607 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 28 mm |
| Weight | 180 g |
