Tridonic LED-Driver LC 50/250-400/140 o4a lp ADV - 87500726

Product number: 87500726
Tridonic LED-Driver LC 50/250-400/140 o4a lp ADV - 87500726
Tridonic LED-Driver LC 50/250-400/140 o4a lp ADV - 87500726
Tridonic LED-Driver LC 50/250-400/140 o4a lp ADV - 87500726
Tridonic LED-Driver LC 50/250-400/140 o4a lp ADV - 87500726
Tridonic GmbH & Co KG

Tridonic LED-Driver LC 50/250-400/140 o4a lp ADV - 87500726

Product number: 87500726

Immediately available

That's why you should buy this product now
  • High Quality at a low price
  • 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
  • Short delivery times for stock items

€25.61


Content: 1 Stück

Prices incl. VAT plus shipping costs net €21.52

Product information "Tridonic LED-Driver LC 50/250-400/140 o4a lp ADV - 87500726"

Dimmable 50W constant current LED ECG

The dimmable constant current LED driver LC 50 / 250-400 / 140 o4a lp ADV from the Advanced range by Tridonic is suitable for installation in luminaires of protection class I and II. It has a maximum output power of 50 watts. Thanks to the high efficiency of up to 91% and the low standby power of <0.4 watts you save energy.

The LED ECG can be ideally used in linear and area lighting. It is also suitable for emergency lighting systems according to EN50172. The application-oriented operating window ensures maximum compatibility.

Output current adjustable

Using the one4all interface, the Tridonic Advanced LED driver can be dimmed in a range of 10 to 100% (at least 25 mA) using DALI-2 DT 6, DSI, switchDIM, or corridorFUNCTION V2. The output current is adjustable between 250 and 400 mA by means of I-SELECT 2 plugs. There are also 0 ° push terminals.

The low profile metal casing with white cover has IP20 protection. In addition, the LED ECG is protected against overtemperature, short circuit, overload, open circuit and at the input voltage range. The nominal life is up to 100,000 hours. Tridonic offers a 5-year warranty on the constant current LED driver.


0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
output current: 250, 275, 300, 325, 350, 375, 400
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
Casing
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 50 °C
Photometric data
color: white
interface: DSI
Logistic data
item category: LED drivers

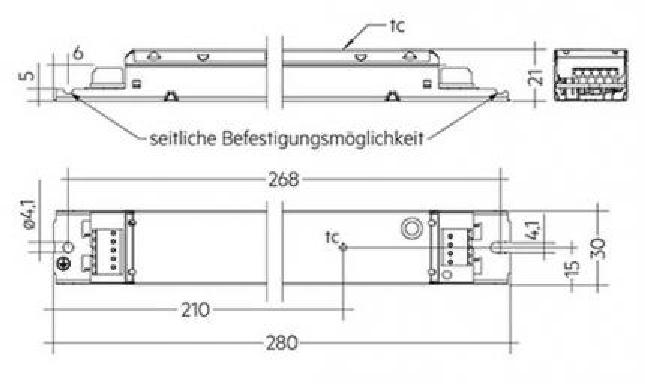

Dimensions & packaging
EAN 9006210683898
Length 280 mm
Width 30 mm
Height 21 mm
