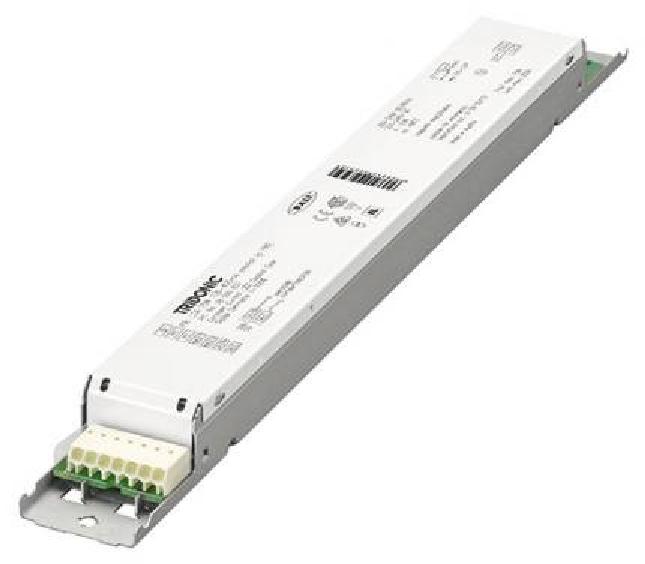

Tridonic LCA 75W 100-400mA one4all lp PRE - 28000657
Product information "Tridonic LCA 75W 100-400mA one4all lp PRE - 28000657"
Dimming range 1 to 100 %
Type of protection IP20
5-year guarantee
Low profile metal casing with white cover
Suitable for emergency escapge lighting systems acc. to EN 50172
Power-up fading at AC
Nominal life-time up to 100,000 h
Dimmable built-in constant current LED Driver
Up to 92 % efficiency
Power input on standby < 0.15 W
Output current adjustable between 100 – 400 mA
one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Adjustable output current (DALI, ready2mains, I-select 2)
Constant light output function (CLO)
Configurable via ready2mains
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Application-oriented operating window for maximum compatibility
Best energy savings due to low standby losses and high efficiency
Flexible configuration via DALI, ready2mains and I-select 2
Reliability proven by life-time up to 100,000 h and 5-year guarantee
For linear/area lighting in office applications
Max. output power 75 W
Type of protection IP20
5-year guarantee
Low profile metal casing with white cover
Suitable for emergency escapge lighting systems acc. to EN 50172
Power-up fading at AC
Nominal life-time up to 100,000 h
Dimmable built-in constant current LED Driver
Up to 92 % efficiency
Power input on standby < 0.15 W
Output current adjustable between 100 – 400 mA
one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Adjustable output current (DALI, ready2mains, I-select 2)
Constant light output function (CLO)
Configurable via ready2mains
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Application-oriented operating window for maximum compatibility
Best energy savings due to low standby losses and high efficiency
Flexible configuration via DALI, ready2mains and I-select 2
Reliability proven by life-time up to 100,000 h and 5-year guarantee
For linear/area lighting in office applications
Max. output power 75 W
Downloads & Documents
Electrical data
| output current: | 100, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| setting type: | resistors/programming |
|---|---|
| color: | white |
| interface: | DSI |
Logistic data
| item category: | LED drivers |
|---|

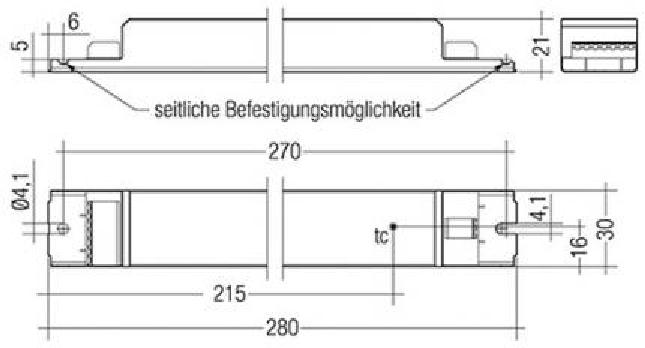

Dimensions & packaging
| EAN | 9006210522739 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 207 g |
