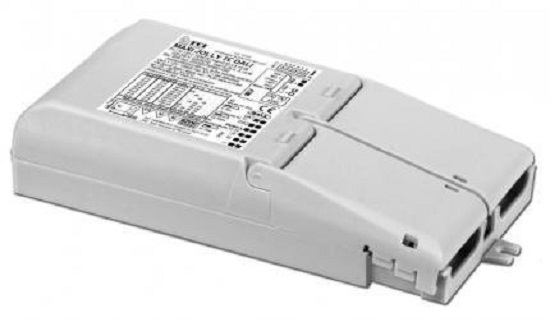

Product information "TCI LED-ECG DC MAXI JOLLY TC DALI"
The constant current LED driver DC MAXI JOLLY TC DALI from TCI is an independent dimmable multipower device with double terminal blocks to loop other drivers. Its nominal power is up to 55 W. A dip-switch allows the adjustion of the output current. Additionally, an active power factor corrector is integrated.
The ECG is equipped with IP20 protection and suitable for indoor use. Its class 2 protection prevents electric shocks for direct or indirect contact.
Dimming is possible via PushDIM interface, via 1 ... 10 V interface or via DALI interface.

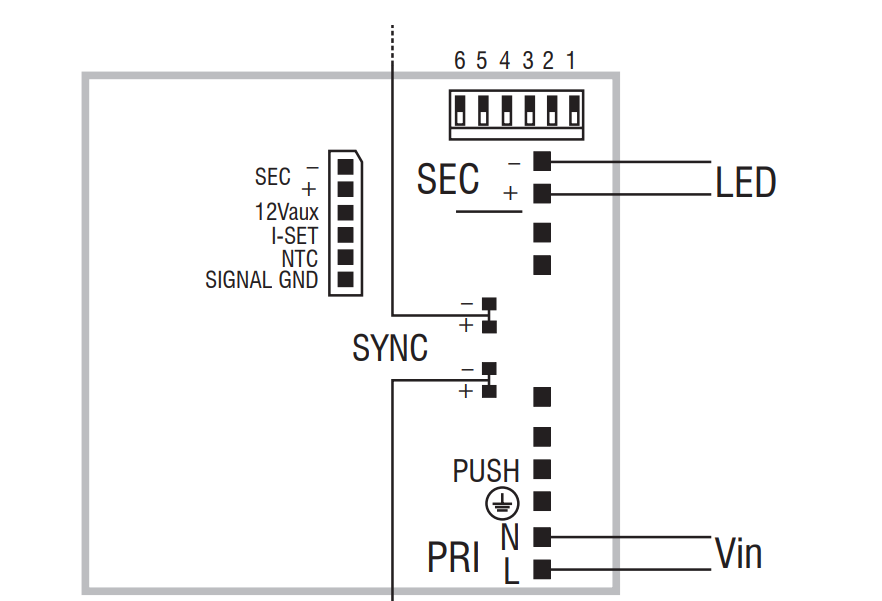

The driver has a 12 V auxiliary output for a maximum of 50 mA and an analogical input for a thermal sensor. The input and output terminal blocks are on the same side (wire cross-section up to 1.5 - 2.5 mm2 / AWG15 - AWG13). Clamping screws for cables with a diameter of min. 3 mm – max. 8 mm are mounted on primary and secondary circuits.
The DC MAXI JOLLY TC DALI is protected against overheating and short circuits, mains voltage spikes and overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5. a. The control accuracy of the output current including temperature fluctuations is + - 5%. It has a service life of 50,000 hours.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 2-52 V |
| operating mode: | constant current |
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
| system power: | 15 W |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | DALI |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

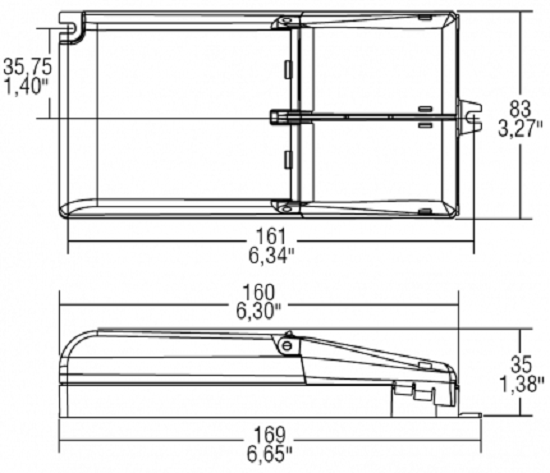

Dimensions & packaging
| EAN | 8010703326897 |
|---|---|
| Length | 83 mm |
| Width | 170 mm |
| Height | 35 mm |
| Weight | 290 g |
