Osram LED-Driver IT DALI 110/220-240/1A0 E - 4052899620285

Inventronics Europe BV

Osram LED-Driver IT DALI 110/220-240/1A0 E - 4052899620285

Product number: 4052899620285

Shipping in 7 day(s)

€42.53


Prices incl. VAT plus shipping costs net €35.74

Product information "Osram LED-Driver IT DALI 110/220-240/1A0 E - 4052899620285"

Discover the high-quality LED driver IT DALI 110/220-240/1A0 E, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.

  • Product name: IT DALI 110/220-240/1A0 E
  • EAN: 4052899620285
  • Insulation: Double
  • Input voltage AC: 198...264 V
  • Input voltage DC: Not relevant
  • Nominal output power: 110 W
  • Nominal output voltage: 75...157 V
  • Rated output current: 350...1050
  • Power factor [λ]: 0.84C...0.99
  • Inrush current: 76.0 A
  • Max. Number of ECGs on 16 A (B) fuse: 13
  • Maximum efficiency: 92.5
  • Ripple (100 Hz): < ±5
  • Dimming function: AstroDIM, DALI-2
  • Corridor function: No
  • Constant lumen function: Programmable
  • DALI-2: Yes
  • Programming interface: n/a
  • Programming device: DALI
  • Emergency mode: No
  • Suitable for emergency lighting: No
  • Service life: 50000 / 100000
  • Operating temperature [Tₐ] in °C: -40...+60
  • Maximum housing temperature [Tᶜ] in °C: 90
  • Protection class: I, II
  • Protection class: IP20

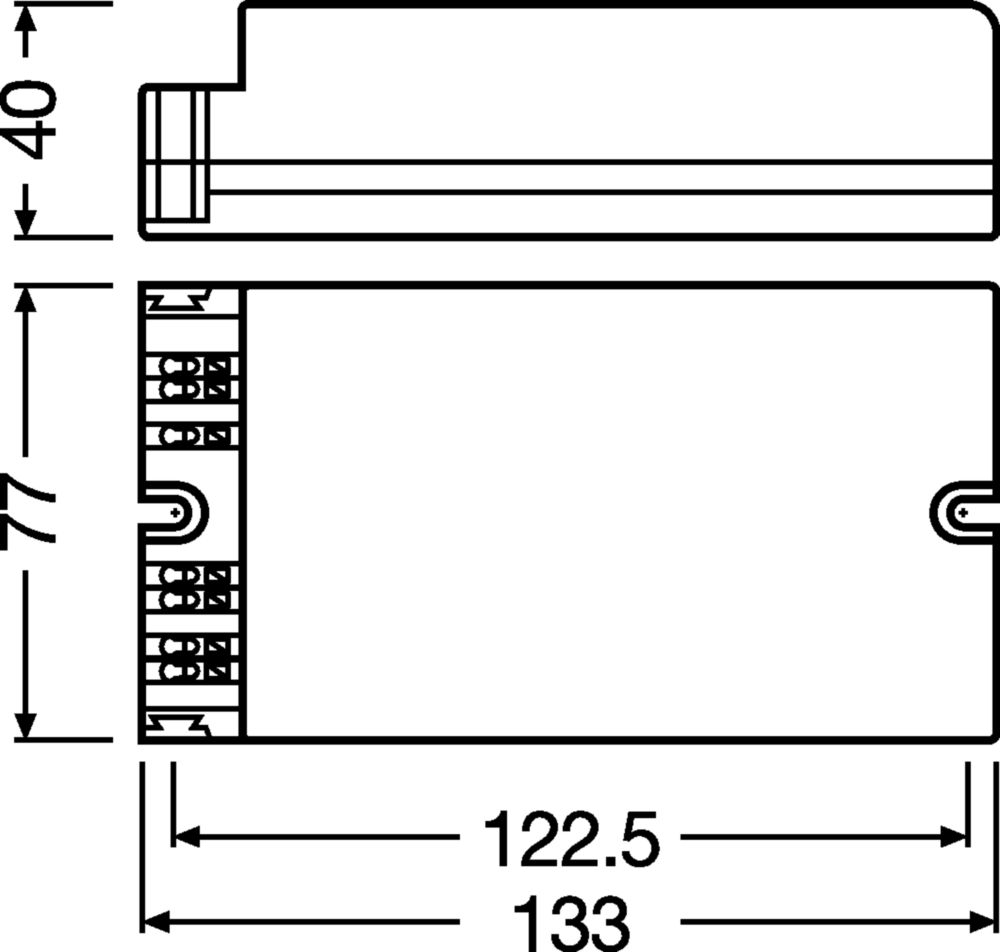

  • Dimensions (L x W x H): 133 x 77 x 40 mm
  • Certificates & approvals: CCC, CE, EAC, RCM, DALI-2, UKCA, VDE-EMC, VDE, ENEC
The IT DALI 110/220-240/1A0 E LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 92.5% and a low ripple of < ±5%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the nominal output currents using DALI. With a service life of 50000 / 100000 hours and a robust design, the IT DALI 110/220-240/1A0 E is suitable for long-term use in various environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
Electrical data
number of channels: 1
output current: 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050
operating mode: constant current
Dimensions & packaging
EAN 4052899620285

Inventronics GmbH
Parkring 31-33,
85748 Garching, Germany

Email: support@inventronicsglobal.com
https://www.inventronicsglobal.com/en/
