Lunatone Industrielle Elektronik GmbH

Lunatone Light Management DALI Sequencer

Product number: 86459582
Lunatone Industrielle Elektronik GmbH

Lunatone Light Management DALI Sequencer

Product number: 86459582

Immediately available

The Lunatone Light Management DALI Sequencer is an IP20 protected control module for automatically running DALI command sequences with 4 memory sequences. It can be built-in mounted in a back box.The sequences can be called with GO TO SCENE commands. A sequence can combine various command-sequences ... Read more

€190.89


Content: 1 Stück

Product information "Lunatone Light Management DALI Sequencer"

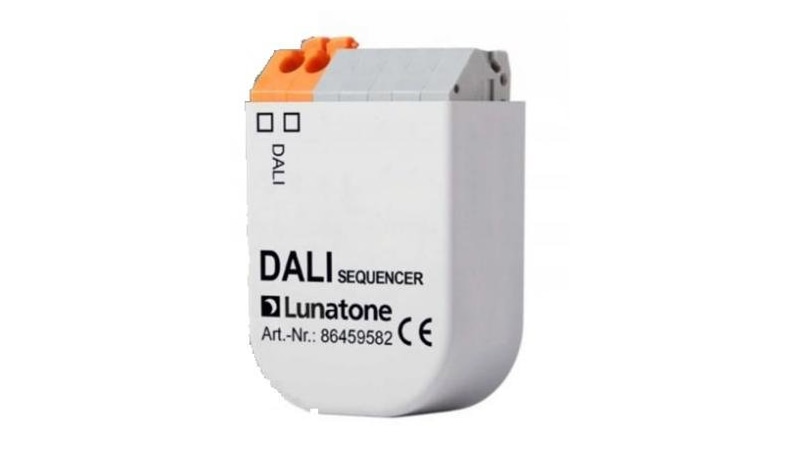

The Lunatone Light Management DALI Sequencer is an IP20 protected control module for automatically running DALI command sequences with 4 memory sequences. It can be built-in mounted in a back box.

The sequences can be called with GO TO SCENE commands. A sequence can combine various command-sequences and scene-recalls. A command sequence can contain up to 19 DALI commands. The sequence can be retrieved singly ore cyclicly.

The DALI Sequencer also allows group assignment and broadcast control. The configuration is easy via the DALI-Cockpit software.

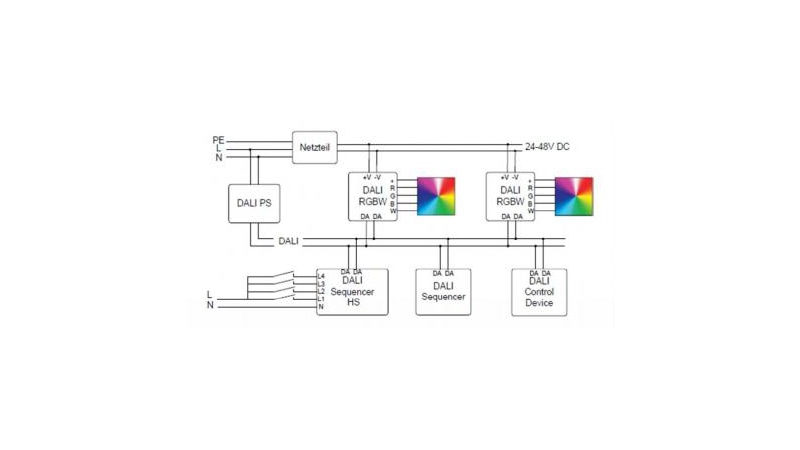

The Lunatone DALI Sequencer is multimaster capable: several modules can be installed in one DALI circuit. Since the module is supplied by the DALI circuit, no additional connection is needed.

Electrical data
rated voltage: DALI bus V
conformity: CE
Casing
ballproof: no
fire protection: no
protection type: IP20
mounting: flush mounting
environment temperature from: -10 °C
environment temperature to: 50 °C
Photometric data
sensor: no
application: indoor
color: white
interface: DALI
solar panel: no
Logistic data
item category: light management

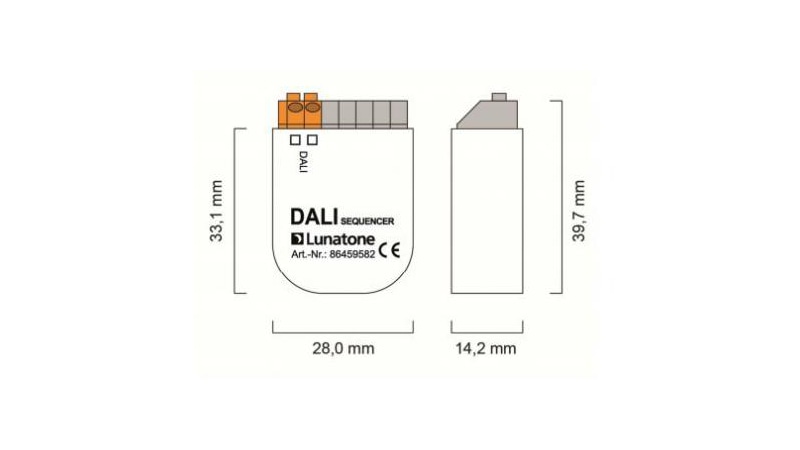

Dimensions & packaging
EAN 9010342010392
Length 58 mm
Width 32 mm
Height 15 mm
Weight 11 g
