Weloom BASIC LED Panel non-DIM 40W 4.400lm 110lm/W - 30135649
Product information "Weloom BASIC LED Panel non-DIM 40W 4.400lm 110lm/W - 30135649"

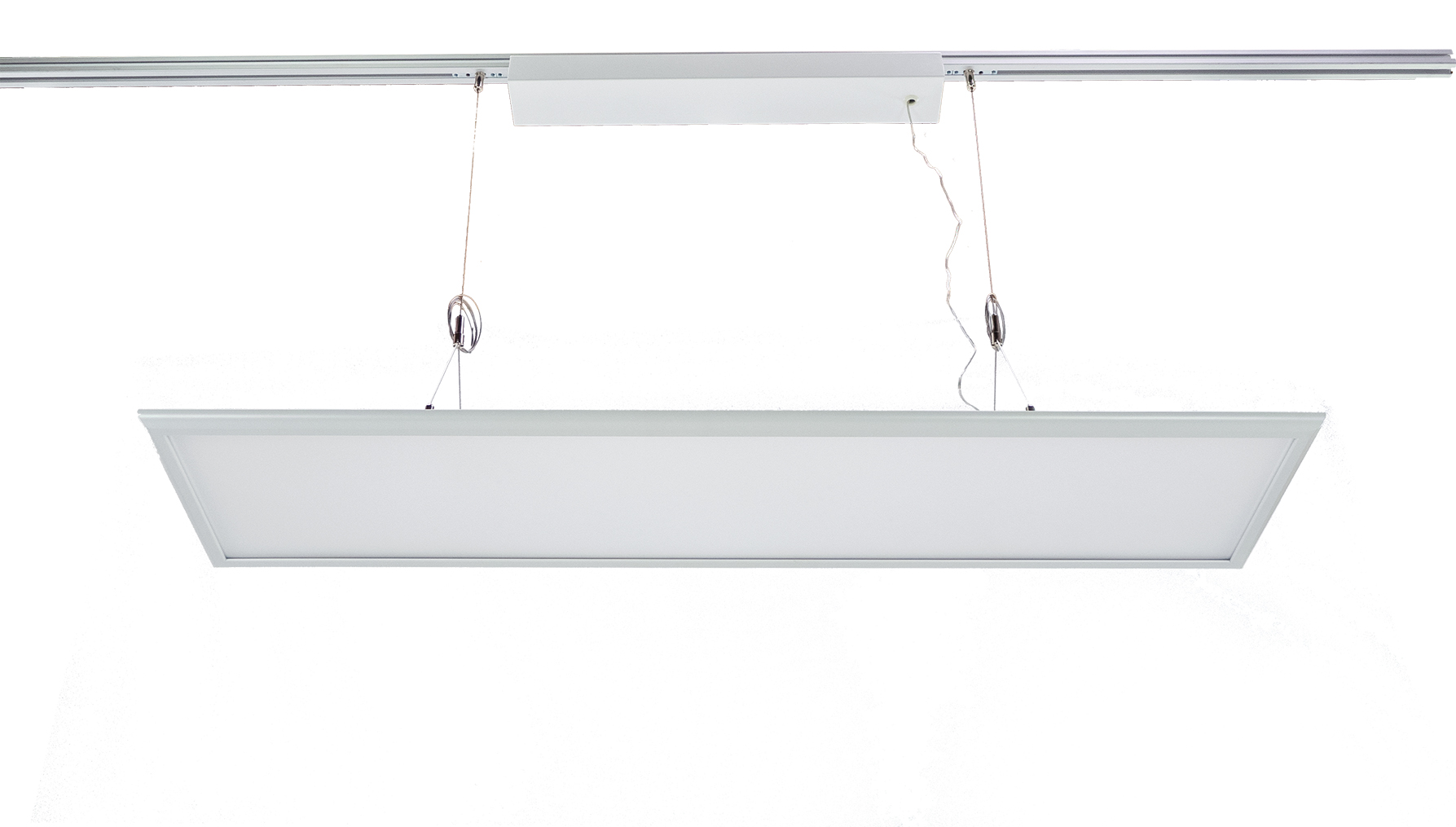

WELOOM BASIC LED Panel is a LED pendant luminaire with translucent PMMA cover forthe single luminaire application. The maximum suspension length is 145 cm by means of Y-rope suspension (included in the scope of delivery).
The luminaire has direct/indirect luminous intensity distribution with glare rating in accordance with UGR classification (EN 12464-1) <16. Complies with EN 12464-1 with limited luminance L ≤ 3000 cd/m2 for beam angles above 65° all round.

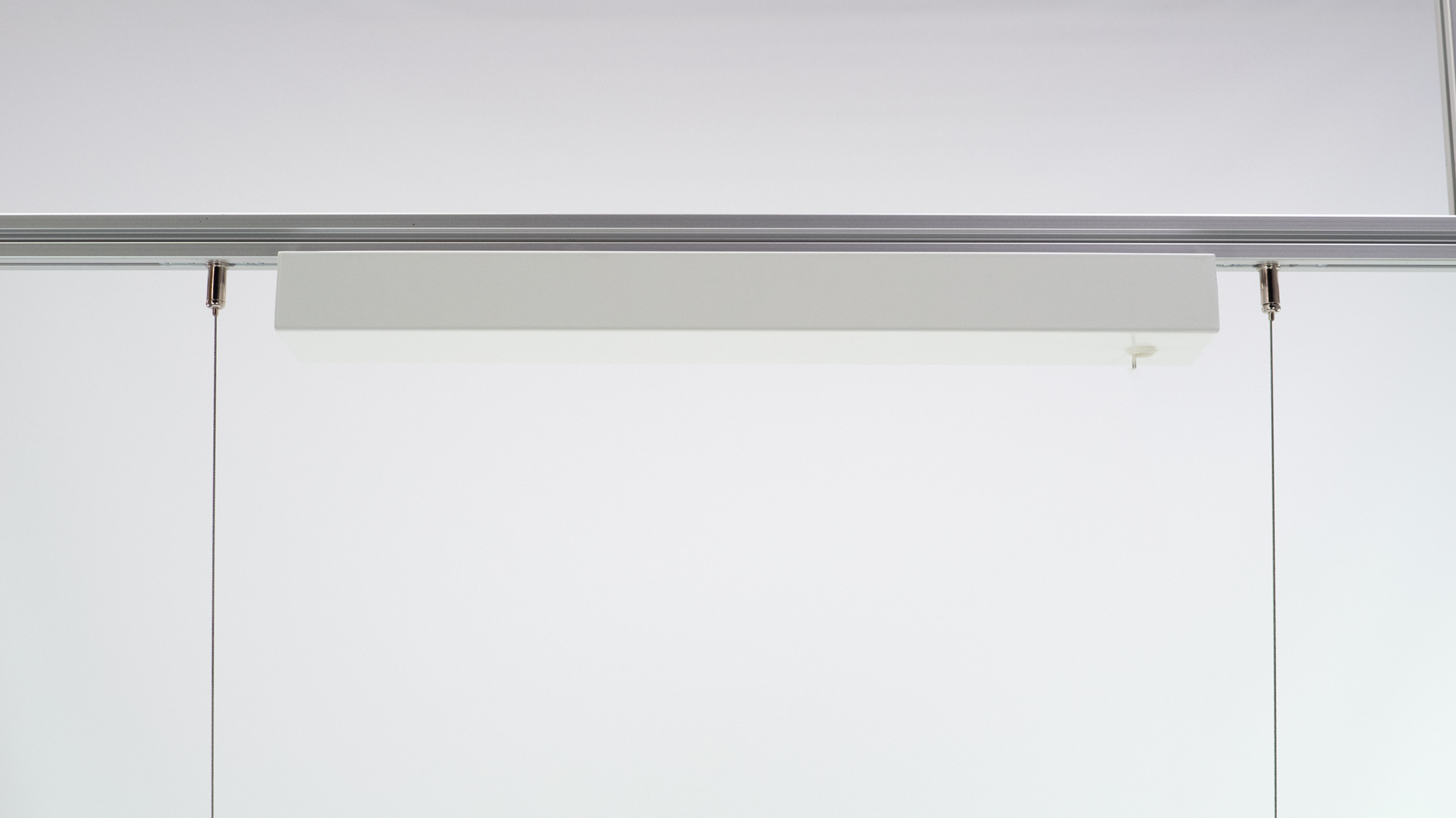

With external control gear, switchable.
Downloads & Documents
Electrical data
| lifetime: | 50000 h |
|---|
Casing
| form type: | linear |
|---|---|
| protection type: | IP20 |
| mounting: | rope suspension |
| impact resist: | IK02 |
| protection class: | I |
| environment temperature from: | -20 °C |
| environment temperature to: | 25 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 110 lm/W |
| lum flux: | 4400 lm |
Logistic data
| item category: | LED panel luminaires |
|---|
Dimensions & packaging
| EAN | 4260677640053 |
|---|---|
| Length | 1195 mm |
| Width | 295 mm |
| Height | 16 mm |
