Trilux twenty3 LED recessed luminaire panel 2330 G3 M84 PW19 3600-830 ETDD - 7630351

Name: Trilux twenty3 LED recessed luminaire panel 2330 G3 M84 PW19 3600-830 ETDD - 7630351
Brand: TRILUX twenty3
SKU: 30140169
Price: 60.63 EUR
Availability: LimitedAvailability

TRILUX twenty3

Trilux twenty3 LED recessed luminaire panel 2330 G3 M84 PW19 3600-830 ETDD - 7630351

Product number: 7630351

Immediately available

Accessories

€60.63

Content: 1 Stück

Prices incl. VAT plus shipping costs net €50.95

Accessories

Product information "Trilux twenty3 LED recessed luminaire panel 2330 G3 M84 PW19 3600-830 ETDD - 7630351"

Luminaire type
Square LED recessed ceiling luminaire with prismatic PMMA cover.

Application areas

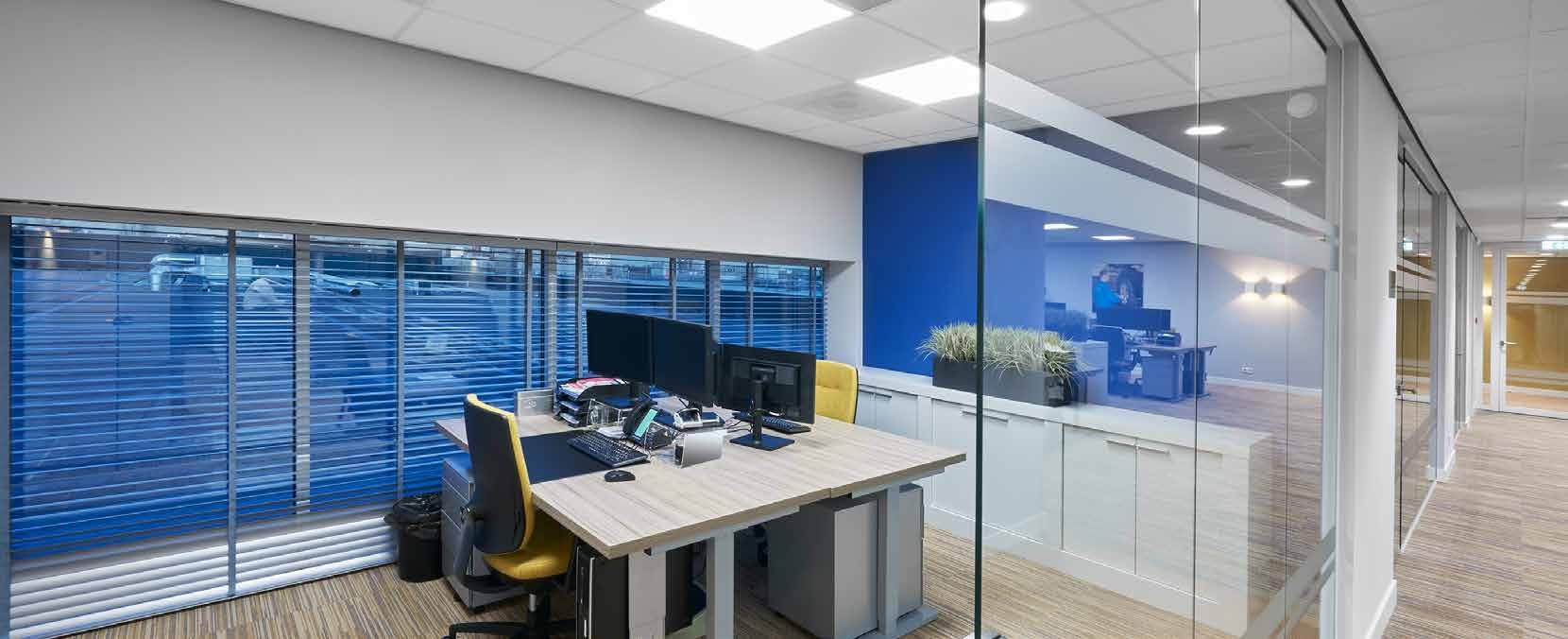

Offices, corridors, foyers, conference rooms, sales areas, waiting areas.

Mounting types
For system ceilings with visible mounting rails. Version M84, system dimension 625 x 625 mm.

Optical system

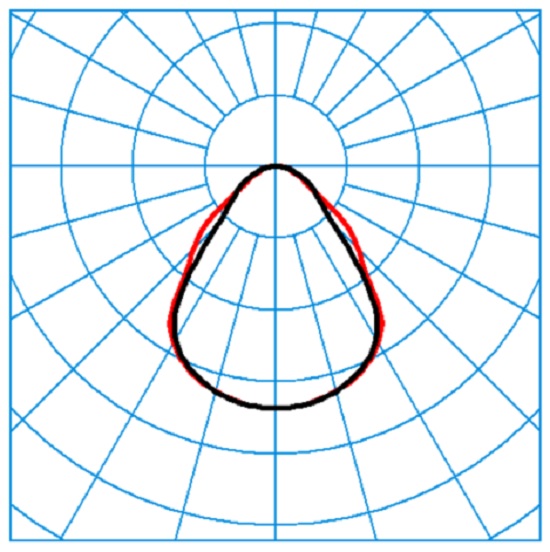

PMMA cover with microprismatics. With deep-wide distribution of luminous intensity. Glare rating according to UGR classification (EN 12464-1) <19. screen-compatible according to EN 12464-1 due to limited luminance L ≤ 3000 cd/m² for beam angles above 65° all around. Harmonious lighting effect due to uniformly illuminated light emission.

LED system
Rated luminous flux 3400 lm, rated power 31.00 W, luminaire luminous efficacy 116 lm/W. Light color warm white, similar to color temperature (CCT) 3000 K, general color rendering index (CRI) R a > 80. Average rated service life L65(t q 25 °C) = 50,000 h.

Luminaire body
Luminaire body made of aluminum. Surface coated white (RAL 9016).

Electrical version
With electronic control gear, digitally dimmable (DALI). The product complies with the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.

Light management
The luminaire is DALI dimmable and can be integrated into the TRILUX LiveLink light management system
