Trilux LED-surface mounted luminaire 74R WD1 LED1000-840 ET

Product number: 6857840
Trilux GmbH & Co. KG

Trilux LED-surface mounted luminaire 74R WD1 LED1000-840 ET

Product number: 6857840

Immediately available

The round surface-mounted luminaire 74R WD1 LED1000-840 ET is ideally suited for wall and ceiling mounting in entrance areas, corridors, stairways, lounges, hotels, restaurants and residential areas. With its color temperature of 4000 K, it provides neutral white light. The luminaire has a sph ... Read more
€173.03 (28% saved)

€123.65


Product information "Trilux LED-surface mounted luminaire 74R WD1 LED1000-840 ET"

The round surface-mounted luminaire 74R WD1 LED1000-840 ET is ideally suited for wall and ceiling mounting in entrance areas, corridors, stairways, lounges, hotels, restaurants and residential areas.

With its color temperature of 4000 K, it provides neutral white light. The luminaire has a spherically-shaped opal PMMA diffuser with a diameter of 320mm which is slightly flattened on the luminaire head. The 74R WD1 LED1000-840 ET has a luminous flux of 1400 lm at a connected load of 13 W. The total luminous efficiency is 108 lm/W. It has a service life of 50,000 operating hours at an ambient temperature of 25 ° C and a luminous flux drop to 80% of the output luminous flux. In general, it can be used at an ambient temperature of -20 ° C to + 25 ° C. The white powder-coated luminaire body consists of sheet steel and is equipped with IP40 protection.

A switchable driver is included.

Technical Data

Logistic Data

EAN (pcs): 4018242367948

EAN (packunit): 4018242367948

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 50/60Hz

EEI (Energy Efficiency Index): A-A+++

Conformity: CE

Service life: L80 = 50000h

Power input: 13W

Technical lighting data

Colorcode: 840

Luminous flux: 1400lm

Colour rendering index (CRI): 80

Lamp Efficiency: 108lm/W

Wattage: LED##0#13#0#0#0#0#

With light source: yes

Dimmable: no

Color temp.: 4000 K, neutral white

Housing Color: white

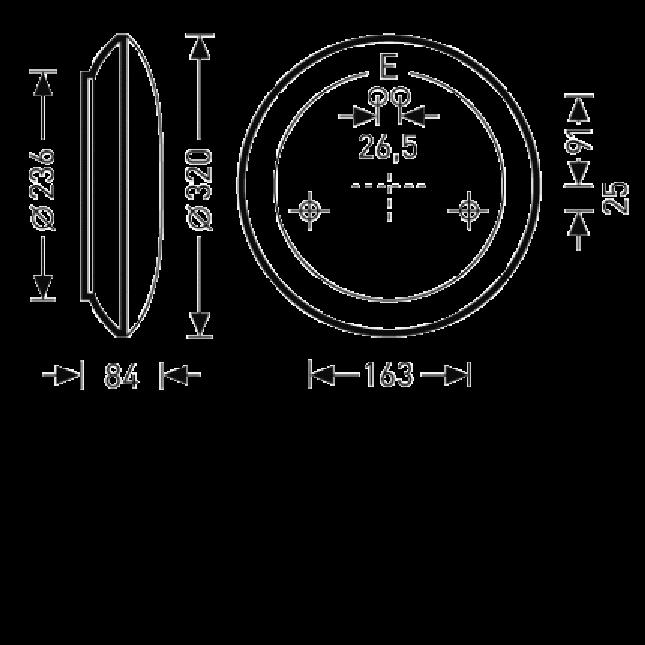

Dimensions

Height [mm]: 84mm

Outer diameter: 320mm

Mounting method: Surface mounted

Housing

IP protection class: IP40

Ambient temperature (ta): -20...+25°C

Impact resistance: IK02

Protection class: I

Item number: 6857840
