Tridonic GmbH & Co KG

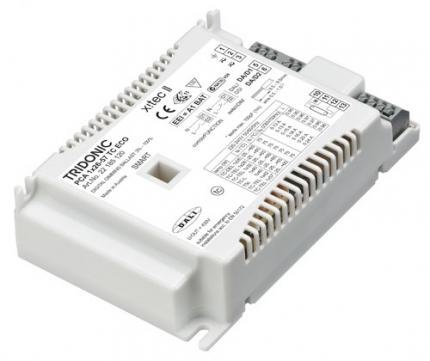

Tridonic PCA 1x18 TC ECO

Product number: 22185122
Tridonic GmbH & Co KG

Tridonic PCA 1x18 TC ECO

Product number: 22185122

Immediately available

Automatic shutdown if the lamp is faultyFor emergency lighting systems as per EN 50172Automatic start after replacement of defective lampsOEM-specific reserved memory areasNoise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTIONDALIDSIswitchDIM (with memory function + select ... Read more

€42.71


Content: 1 Stück

Product information "Tridonic PCA 1x18 TC ECO"

Automatic shutdown if the lamp is faulty
For emergency lighting systems as per EN 50172
Automatic start after replacement of defective lamps
OEM-specific reserved memory areas
Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
DALI
DSI
switchDIM (with memory function + selectable dimming rate)
corridorFUNCTION (3 preprogrammed profiles)
Optimum filament heating in any dimmer setting
Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
Intelligent Temperature Guard (overtemperature protection)
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Processor-controlled ballast with xitec II inside
Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs
corridorFUNCTION with ambient light control
Automatically triggered emergency lighting value in DC mode, 15 %
Highest possible energy class CELMA EEI = A1 BAT
Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
5-year guarantee
SMART interface for SMART plug cF – for setting the corridorFUNCTION profiles
SMART interface for SMART sensor with daylight control
Downloads & Documents
Electrical data
number of channels: 1
energy efficiency index: A1BAT
rated voltage: 220-240 V
system power: 18 W
Casing
protection type: IP20
environment temperature from: -25 °C
environment temperature to: 70 °C
Photometric data
dimmable: yes
interface: DSI

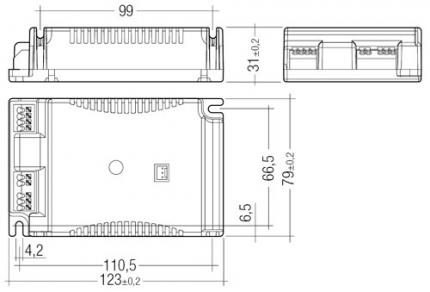

Dimensions & packaging
EAN 9006210356570
Length 123 mm
Width 79 mm
Height 31 mm
Weight 147 g
