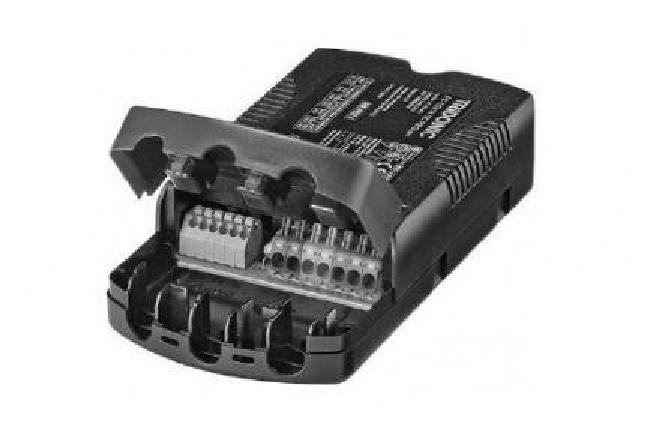

Tridonic PC 1/2x11-17 TC PRO sr+

Product number: 22176411
Tridonic GmbH & Co KG

Tridonic PC 1/2x11-17 TC PRO sr+

Product number: 22176411

Immediately available

No tools required for installationThrough wiring possibleFor emergency lighting systems as per EN 50172Temperature protection as per EN 61347-2-3 C5eLarge temperature range (for values see table)Automatic start after replacement of defective lampsConstant luminous flux irrespective of fluctuations ... Read more

€11.28

Product information "Tridonic PC 1/2x11-17 TC PRO sr+"
No tools required for installation
Through wiring possible
For emergency lighting systems as per EN 50172
Temperature protection as per EN 61347-2-3 C5e
Large temperature range (for values see table)
Automatic start after replacement of defective lamps
Constant luminous flux irrespective of fluctuations in mains voltage
Integrated terminal cover and strain relief
For luminaires of protection class I and protection class II
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
3 separate strain reliefs
Devices can operate either 1 or 2 lamps
Safety shutdown of defective lamps and at end of lamp life (EOL 2)
Nominal life-time up to 50,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
CELMA Energy Efficiency Index A2 BAT / A2
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711

Technical Data

Logistic Data

EAN (pcs): 9006210345871

EAN (packunit): 9006210345833

Electrical Data

Rated Voltage: 220 – 240V

Rated frequency: 50/60Hz

EEI (Energy Efficiency Index): A2BAT

Technical lighting data

Wattage: TC-TEL#2#0#17#0#0#0#0#

With light source: no

Dimmable: no

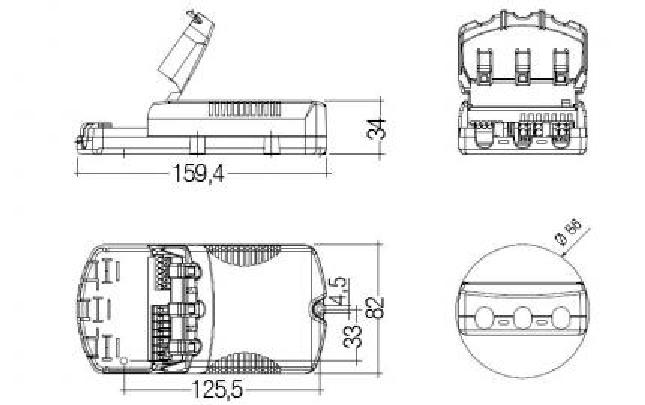

Dimensions

Width [mm]: 82mm

Height [mm]: 34mm

Length [mm]: 159mm

Hole dimension [mm]: 125.500mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 80°C

Ambient temperature (ta): -25 ... +75°C

Item number: 22176411
