Tridonic GmbH & Co KG

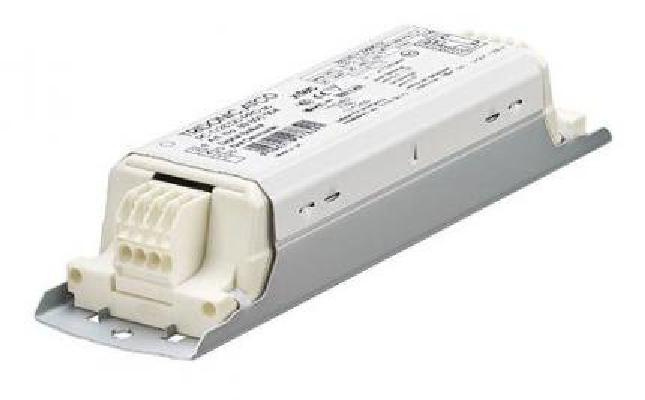

Tridonic PC 1/28 DD PRO sc

Product number: 89800004
Tridonic GmbH & Co KG

Tridonic PC 1/28 DD PRO sc

Product number: 89800004

Immediately available

For emergency lighting systems as per EN 50172Temperature protection as per EN 61347-2-3 C5eLarge temperature range (for values see table)Automatic start after replacement of defective lampsConstant luminous flux irrespective of fluctuations in mains voltageFor luminaires of protection class I and ... Read more

€11.21

Product information "Tridonic PC 1/28 DD PRO sc"
For emergency lighting systems as per EN 50172
Temperature protection as per EN 61347-2-3 C5e
Large temperature range (for values see table)
Automatic start after replacement of defective lamps
Constant luminous flux irrespective of fluctuations in mains voltage
For luminaires of protection class I and protection class II
Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Safety shutdown of defective lamps and at end of lamp life
CELMA Energy Efficiency Index A2 / A3
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Nominal life-time up to 50,000 h (at max. ta with a failure rate ≤ 0.2 % per 1,000 h)

Technical Data

Logistic Data

EAN (pcs): 9006210278391

EAN (packunit): 9006210278407

Electrical Data

Rated Voltage: 220 – 240V

Rated frequency: 50/60Hz

EEI (Energy Efficiency Index): A2

Technical lighting data

Wattage: TC-DD#1#0#28#0#0#0#0#

With light source: no

Dimmable: no

Dimensions

Width [mm]: 40mm

Height [mm]: 28mm

Length [mm]: 150mm

Hole dimension [mm]: 139.000mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 85°C

Ambient temperature (ta): -25 ... +60°C

Item number: 89800004
