Tridonic LMI 48V 350–700mA 20–42V FO Regular - 28000728
Tridonic GmbH & Co KG
Tridonic LMI 48V 350–700mA 20–42V FO Regular - 28000728
Product number:
28000728
Shipping in 7 day(s)
€22.80
Prices incl. VAT plus shipping costs net €19.16
Product information "Tridonic LMI 48V 350–700mA 20–42V FO Regular - 28000728"
Product description
- Dimmable via potentiometer
- Up to 93 % efficiency
- Output voltage range 20 – 42 V
- Adjustable output current between 350 and 700 mA via DIP switch
- Output current tolerance ± 8 %
- Max. tc point temperature 120 °C
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties

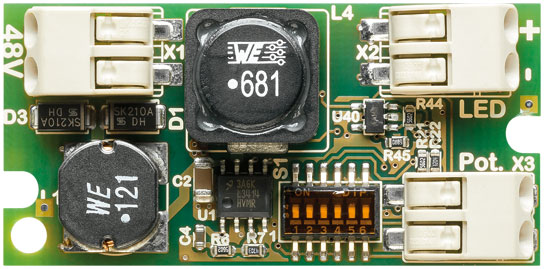

- Pure PCB for built-in application
- Suitable for class III applications
Interfaces
- Terminal blocks: 0° push terminals
- External potentiometer can be equipped via clamp
Functions
- Adjustable output current
- Protective features (short-circuit, no-load)
Benefits
- Application-oriented operating window
- Small dimensions for miniaturization of luminaires
EAN/UPC: 9006210529400
Country of Origin: AT
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 350, 400, 450, 500, 550, 600, 650, 700 |
|---|---|
| operating mode: | constant current |
