Tridonic GmbH & Co KG

Tridonic LED-Driverr LC 60W 900-1750mA flexC SR EXC

Product number: 28000702
Tridonic GmbH & Co KG

Tridonic LED-Driverr LC 60W 900-1750mA flexC SR EXC

Product number: 28000702

Immediately available

The dimmable electronic ballast for LED modules LC 60W 900-1750mA flexC SR EXC from the EXCITE series from Tridonic is perfect for downlights, spotlights and decorative applications. It is also suitable for emergency escape lighting systems according to EN 50172. The cable cross section can be up t ... Read more

€30.54


Content: 1 Stück

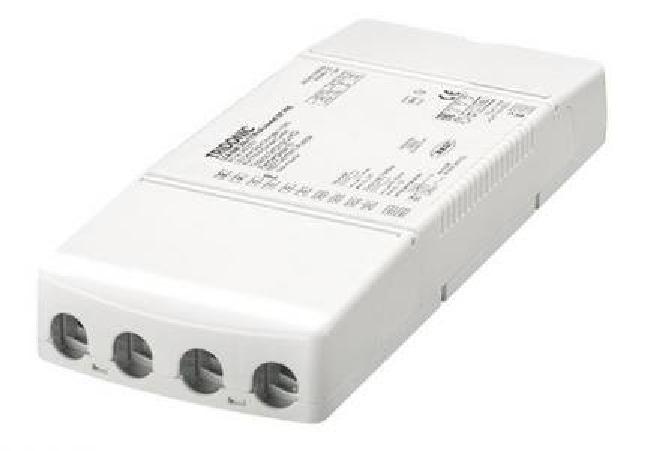

Product information "Tridonic LED-Driverr LC 60W 900-1750mA flexC SR EXC"

The dimmable electronic ballast for LED modules LC 60W 900-1750mA flexC SR EXC from the EXCITE series from Tridonic is perfect for downlights, spotlights and decorative applications. It is also suitable for emergency escape lighting systems according to EN 50172. The cable cross section can be up to 2.5mm2.

With a ready2mains programmer or I-select 2 plugs, the output current can be adjusted in 1 mA steps between 900 and 1750 mA. The LED driver has an energy efficiency of up to 90%. Its rated output is 60 watts.

Via its ready2mains interface, the constant current LED driver can be dimmed in a dimming range of 15 to 100% depending on the load. The LED driver can also be configured via the ready2mains interface. In addition, the driver features 45 ° and 0 ° push terminals.

The housing is made of white polycarbonate and is equipped with IP20 protection. A strain relief with a loop through function is available. No tools are required for the installation.

The service life is 100,000 hours. Tridonic offers a five-year warranty on the LED ECG.

Electrical data
number of channels: 1
output voltage: 20-54 V
rated voltage: 220-240 V
lifetime: 100000 h
Casing
form type: rectangular
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: with strain relief
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
dimming range to: 100 %
color: white
interface: ready2mains
Logistic data
item category: LED drivers

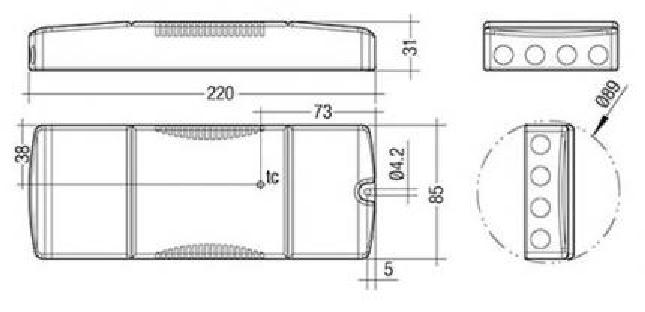

Dimensions & packaging
EAN 9006210525884
Length 220 mm
Width 85 mm
Height 31 mm
Weight 280 g
