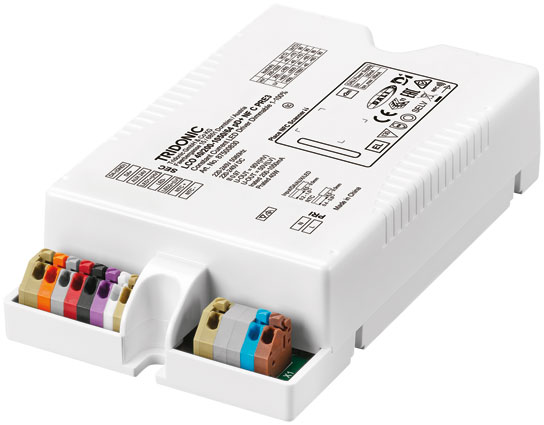

Tridonic LED-Driver LCO 40W 200–1050mA 64V pD+ NFC C PRE3 - 87500830
Tridonic GmbH & Co KG
Tridonic LED-Driver LCO 40W 200–1050mA 64V pD+ NFC C PRE3 - 87500830
Product number:
87500830
Immediately available
€62.45
Prices incl. VAT plus shipping costs net €52.48
Product information "Tridonic LED-Driver LCO 40W 200–1050mA 64V pD+ NFC C PRE3 - 87500830"
Product description
- Dimmable built-in constant current outdoor D4i LED driver
- Dimming range 1 to 100 % (min. 10 mA)
- For luminaires of protection class I and protection class II
- SELV for output voltage < 120 V DC
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer
- Max. output power 40 W
- Up to 89.8 % efficiency
- Lowest power input on stand-by < 0.3 W
- Nominal lifetime of 100,000 h and 8 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Interfaces
- Near field communication (NFC)
- Powered DALI-2
- ready2mains (configuration via mains)
- U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)
- Terminal blocks: 45° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)
- Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2)
- Enhanced constant light output function (eCLO)
- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
- Intelligent Temperature Guard (ITG)
- Intelligent Voltage Guard Plus (IVG+)
- Configurable external temperature management (ETM)
- Auxiliary 24 V, 3 W power supply
- DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52
Benefits
- Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer
- Operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
- In-field programming possible after installation with NFC interface and ready2mains
- High overvoltage protection: up to 10 kV asymmetric (protection class I and II)
Typical applications
- Road, street and industry
EAN/UPC: 9006210696263
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |
