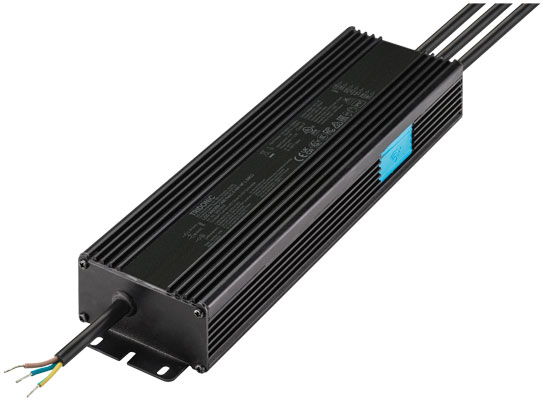

Tridonic LED-Driver LCO 300W 200–1400mA flexC 0-10V NF L SNC3 - 28003560
Tridonic GmbH & Co KG
Tridonic LED-Driver LCO 300W 200–1400mA flexC 0-10V NF L SNC3 - 28003560
Product number:
28003560
Shipping in 5 day(s)
€108.60
Prices incl. VAT plus shipping costs net €91.26
Product information "Tridonic LED-Driver LCO 300W 200–1400mA flexC 0-10V NF L SNC3 - 28003560"
- Constant current LED driver
- Tested according to salt spray test (ISO 9227)
- Dimmable via 0 ... 10 V (incl. stand-by)
- Dimming range from 1 - 100 %
- Output current adjustable between 200 - 1,400 mA with NFC
- Max. Output power 300 W
- Up to 92 % efficiency
- Nominal service life 45,000 h
- 5-year guarantee (conditions see https://www.tridonic.com/herstellergarantiebedingungen)
Downloads & Documents
Electrical data
| output current: | 200, 500, 800, 1100, 1400 |
|---|---|
| operating mode: | constant current |

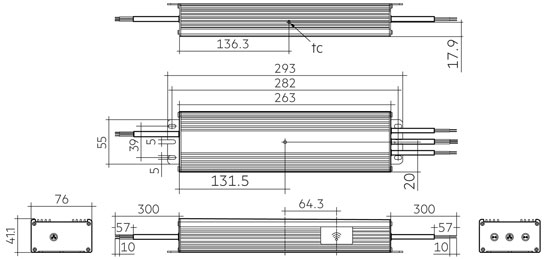

Dimensions & packaging
