Tridonic LED-Driver LCO 14W 100–500mA 38V one4all NFC C EXC3 - 28003165
Tridonic GmbH & Co KG

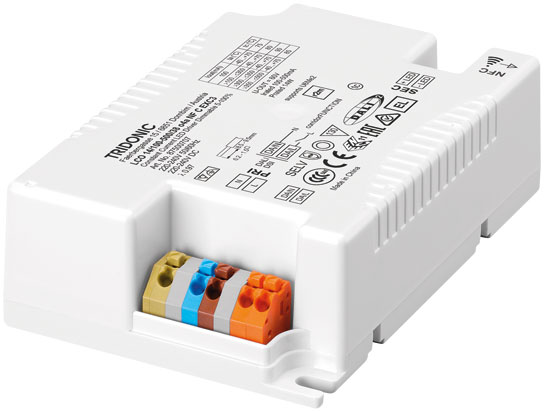

Tridonic LED-Driver LCO 14W 100–500mA 38V one4all NFC C EXC3 - 28003165
Product number:
28003165
Shipping in 5 day(s)
€44.41
Prices incl. VAT plus shipping costs net €37.32
Product information "Tridonic LED-Driver LCO 14W 100–500mA 38V one4all NFC C EXC3 - 28003165"
- NEW: lumDATA (DALI-2 part 251, 252 and 253)
- Dimmable outdoor constant current LED driver for luminaire installation
- Dimming range 5 - 100 % (min. 5 mA)
- For luminaires in protection class I and protection class II
- Temperature protection in accordance with EN 61347-2-13 C5e
- Output current adjustable between 100 - 500 mA with NFC, DALI or ready2mains programmer
- Max. Output power 14 W
- Up to 87 % efficiency
- Low power consumption in standby < 0.16 W
- Art. No. 28003165: Made in Europe, Art. No.: 87500707: Made in China.
- Nominal service life up to 100,000 h and 8-year guarantee (for conditions see https://www.tridonic.com/herstellergarantiebedingungen)
Downloads & Documents
Electrical data
| output current: | 100, 150, 200, 300, 350, 400, 450, 500 |
|---|---|
| operating mode: | constant current |

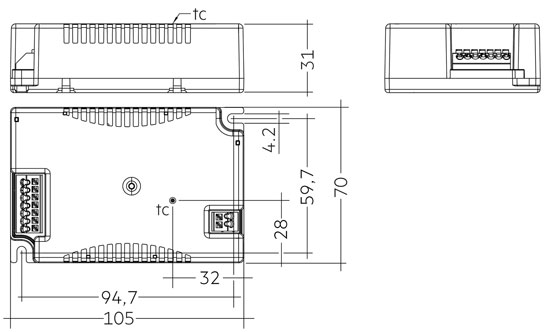

Dimensions & packaging
