Immediately available
€45.78
Prices incl. VAT plus shipping costs net €38.47

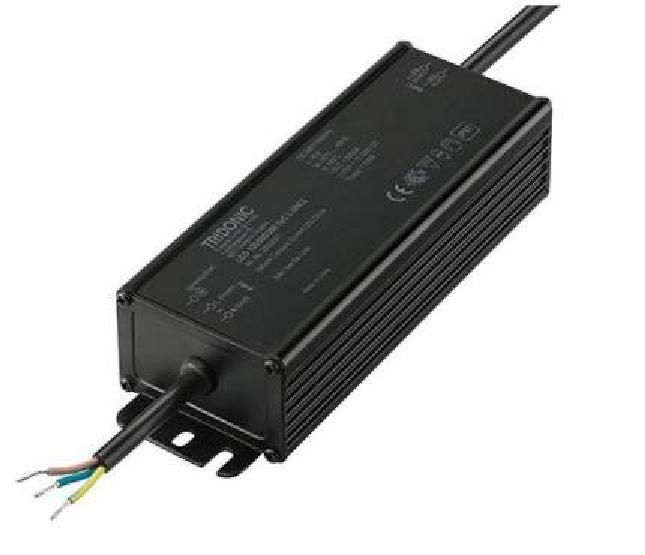

Product information "Tridonic LED-Driver LCO 100/700/143 fixC L SNC2"
100W constant current LED ECG for outdoor use
The fixed output constant current LED driver LCO 100/700/143 fixC L SNC2 from the SNC Outdoor series by Tridonic is suitable for installation in luminaires of protection class I or independent mounting. It has a nominal output of 100 watts with an output current of 700 mA. You benefit from high efficiency (up to 91.5%) and corresponding energy savings!
IP67 protection; temperature range -40...+65 °C
Thanks to its IP67 protection, the LED ECG is ideal for outdoor use. In addition, it has an extended temperature range of -40 to +65 ° C and is protected against overtemperature, overload, short circuit and open circuit. The housing is made of black metal. The outdoor LED driver has a nominal life of up to 50,000 hours (at ta = 60 ° C). Tridonic offers a 5-year warranty (at ta = 60 ° C).
Technical Data
Logistic Data
EAN (pcs): 9006210676166
EAN (packunit): 9006210676173
Electrical Data
Rated Voltage: 220-240V
Rated frequency: 50/60Hz
Output voltage: 43.0000-143.0000V
Output current: 0.7000-0.7000A
Conformity: CE/ENEC/RoHS
Service life: 50000h
Operating mode: Constant current
Power input: 100W
Technical lighting data
Wattage: LED#1#0#100#0.7#0.7#43#143#1
Dimmable: no
Interface: on/off
Housing Color: black

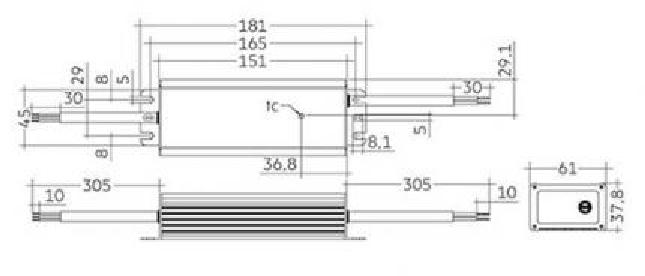

Dimensions
Width [mm]: 61mm
Height [mm]: 38mm
Length [mm]: 181mm
Mounting method: Surface mounted
Housing
IP protection class: IP67
Max. housing temperature (tc,max): 90°C
Ambient temperature (ta): -40...+65°C
Item number: 28002302
Downloads and documents
