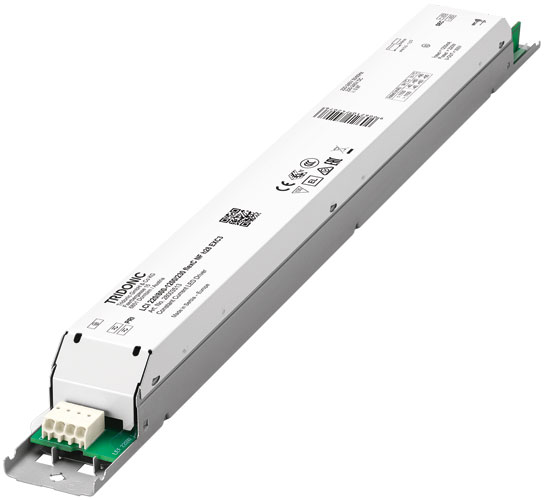

Tridonic LED-Driver LCI 220W 800-1200mA flexC NF h28 EXC3 (INDUSTRY) - 28003513
Tridonic GmbH & Co KG
Tridonic LED-Driver LCI 220W 800-1200mA flexC NF h28 EXC3 (INDUSTRY) - 28003513
Product number:
28003513
Immediately available
€58.43
Prices incl. VAT plus shipping costs net €49.10
Product information "Tridonic LED-Driver LCI 220W 800-1200mA flexC NF h28 EXC3 (INDUSTRY) - 28003513"
Product description
- Constant current built-in LED driver, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as cold warehouses or factories
- For class I luminaires
- Output current adjustable between 800 – 1,200 mA
- Max. output power 220 W
- Suitable for mains voltage peaks (burst/surge) up to 4 kV
- Expanded temperature range of -40 ... +80 °C
- Nominal lifetime up to 80,000 h (at ta 70 °C)
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- White slim metal casing
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC)
- Intelligent Temperature Guard (overtemperature protection)
- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE (NFC)
- Application-oriented operating window for maximum compatibility
- Extended vibration damping
- Increased safety through robust design and advanced testing under extreme test conditions
- High reliability through the selection of exclusive components
Typical applications
- For linear/area lighting in industry applications
EAN/UPC: 9006210742076
Country of Origin: RS
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200 |
|---|---|
| operating mode: | constant current |
