Tridonic LED-Driver LCI 150/325-1050/300 o4a sl PRE mod - 28002054

Product number: 28002054
Tridonic LED-Driver LCI 150/325-1050/300 o4a sl PRE mod - 28002054
Tridonic LED-Driver LCI 150/325-1050/300 o4a sl PRE mod - 28002054
Tridonic LED-Driver LCI 150/325-1050/300 o4a sl PRE mod - 28002054
Tridonic LED-Driver LCI 150/325-1050/300 o4a sl PRE mod - 28002054
Tridonic GmbH & Co KG

Tridonic LED-Driver LCI 150/325-1050/300 o4a sl PRE mod - 28002054

Product number: 28002054

Immediately available

That's why you should buy this product now
  • High Quality at a low price
  • 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
  • Short delivery times for stock items

€51.24


Content: 1 Stück

Prices incl. VAT plus shipping costs net €43.06

Product information "Tridonic LED-Driver LCI 150/325-1050/300 o4a sl PRE mod - 28002054"

150W LED ECG for industrial applications

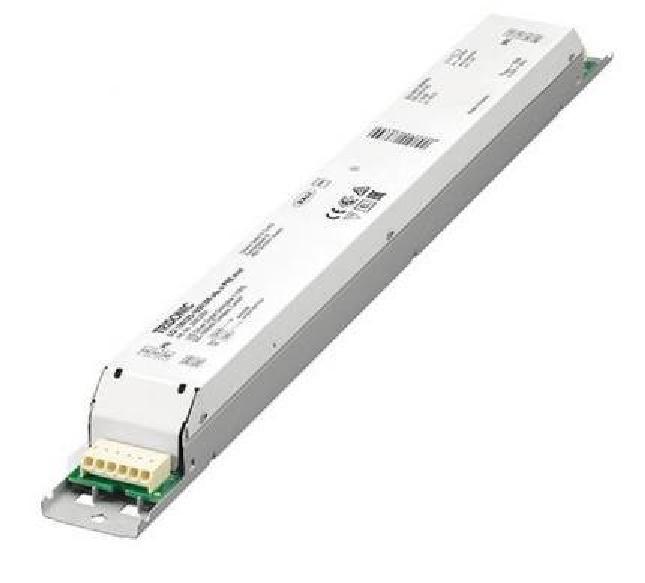

The constant current LED driver LCI 150/325-1050/300 o4a sl PRE mod from the "premium non-SELV" series by Tridonic is suitable for luminaire installation. It has a maximum output power of 150 watts and is suitable for peak voltages (burst / surge) up to 4 kV. It is also suitable for emergency lighting systems according to EN50172.

The LED ECG is particularly suitable for linear and area lighting in industrial applications with temperate environments such as semiconductor factories or logistic warehouses, because it has an extended temperature range of -25 ... + 50 ° C. The white "slim" case is made of metal and has IP20 protection. There are 0° push terminals. The selection of exclusive components ensures maximum reliability.

Dimmable via DALI-2 DT6, switchDIM, DSI

The constant current LED driver can be dimmed via its one4all interface (DALI-2 DT6, switchDIM, corridor function and DSI) within a range of 1-100%. The output current can be adjusted between 325 and 1,050 using an I-SELECT resistor or eD. DALI, ready2mains and I-SELECT 2 allow you to flexibly configure the LED ECG.

The application-oriented operating window ensures maximum compatibility. The LED ECG has a constant light output function (CLO) and power-up fading at AC. It also has an Intelligent Temperature Guard and an Intelligent Voltage Guard.

5-year warranty

The LED driver is protected against overtemperature, short circuit, overload, open circuit and input voltage range. The nominal life is up to 100,000 hours (at 50 ° C). Tridonic offers a 5-year warranty.


0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
output current: 325, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
Casing
form type: linear
max housing temperature (tc-max): 72 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 50 °C
Photometric data
color: white
interface: DSI
Logistic data
item category: LED drivers

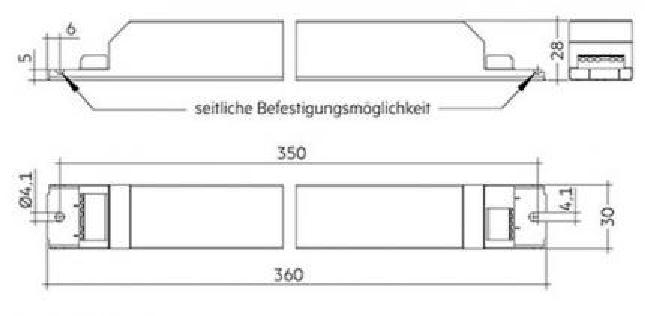

Dimensions & packaging
EAN 9006210636399
Length 360 mm
Width 30 mm
Height 28 mm
Weight 321 g
