Tridonic GmbH & Co KG

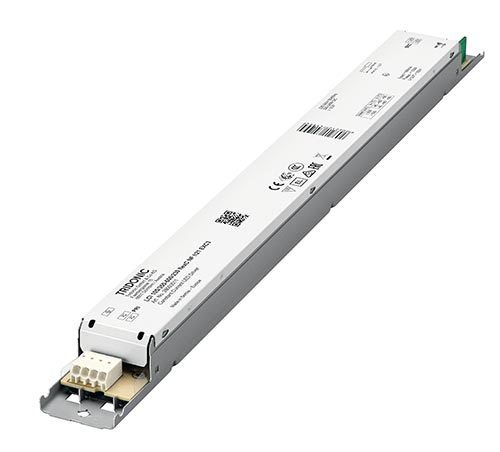

Tridonic LED driver LCI 105W 350-600mA flexC NF h21 EXC3 – 28003511
Product number:
28003511
Immediately available
€28.82
Content:
1 Stück
Prices incl. VAT plus shipping costs net €24.22
Product information "Tridonic LED driver LCI 105W 350-600mA flexC NF h21 EXC3 – 28003511"
Product description
- Constant current built-in LED driver, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as cold warehouses or factories
- For class I luminaires
- Output current adjustable between 350 – 600 mA
- Max. output power 105 W
- Suitable for mains voltage peaks (burst/surge) up to 4 kV
- Expanded temperature range of -40 ... +80 °C
- Nominal lifetime up to 90,000 h (at ta 70 °C)
- 5 years guarantee
Housing properties
- Low profile metal casing with white cover
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC)
- Intelligent Temperature Guard (overtemperature protection)
- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE (NFC)
- Application-oriented operating window for maximum compatibility
- Extended vibration damping
- Increased safety through robust design and advanced testing under extreme test conditions
- High reliability through the selection of exclusive components
Typical applications
- For linear/area lighting in industry applications
Downloads & Documents
Electrical data
output current: | 350, 400, 450, 500, 550, 600 |
---|---|
operating mode: | constant current |
rated voltage: | 220-240 V |
conformity: | CE, EAC, ENEC, UKCA |
lifetime: | 100000 h |
Casing
form type: | rectangular |
---|---|
max housing temperature (tc-max): | 80 °C |
protection type: | IP20 |
material: | plastic |
mounting: | universal mounting |
protection class: | I |
environment temperature from: | -20 °C |
environment temperature to: | 50 °C |
Photometric data
color: | white |
---|---|
interface: | NFC |

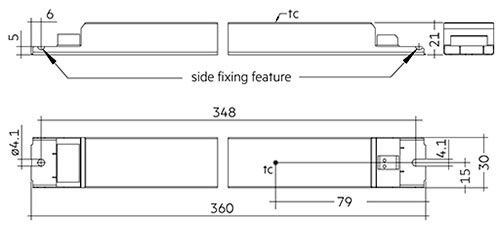

Dimensions & packaging
Length | 360 mm |
---|---|
Width | 30 mm |
Height | 21 mm |
Weight | 257 g |
