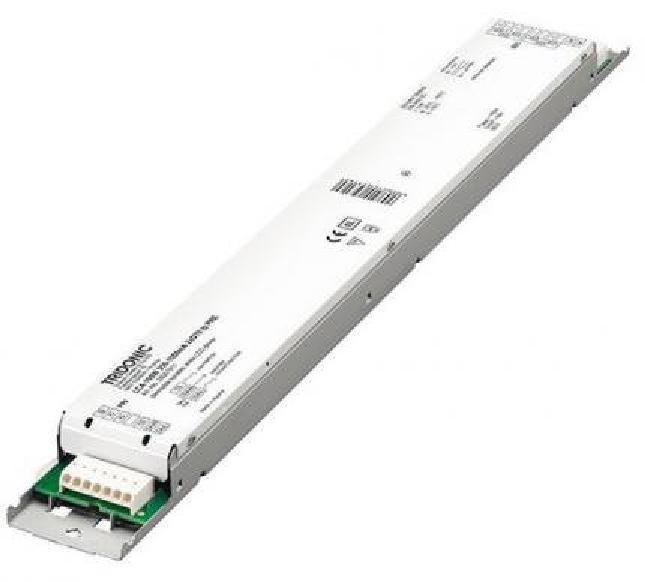

Product information "Tridonic LED-Driver LCA 100W 350-1050mA 2xDT8 lp PRE"
The dimmable four-channel constant current LED driver with 2 x DALI DT8 LCA 100W 350-1050mA 2xDT8 lp PRE from the Tunable White series by TRIDONIC is suitable for installation in luminaires of protection class I and II. The rated power is up to 100 watts.
Ideal applications include linear and area lighting in office applications and tunable white applications.
The output current can be adjusted between 350 and 1050 mA for each channel using I-Select 2 plugs or DALI. The LED driver has an efficiency of up to 90%. The power consumption in stand-by mode is less than 0.25 watts. Application-oriented operating windows ensure maximum compatibility.
The TRIDONIC Tunable White LED ECG has a one4all interface (DALI DT8, DSI, switchDIM, corridorFUNCTION V2) and a colorSWITCH interface as well as 0 ° plug-in terminals. Features include a Constant Light Output function (CLO), a switchDIM and colorSWITCH function with memory function, a power-up fading function and fade-to-zero. The configuration is done via DALI.
The IP20-protected low-profile housing of the LED driver is made of metal and has a white cover.
The LED driver has an overtemperature, short circuit, overload and open circuit protection and a reduced surge ampflication.
The nominal life is up to 100,000 hours. TRIDONIC offers a 5 year warranty on the LED ECG.
Downloads & Documents
Login
Electrical data
| number of channels: | 4 |
|---|---|
| output voltage: | 20-50 V |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 3 % |
| color: | white |
| interface: | DSI |
Logistic data
| item category: | LED drivers |
|---|

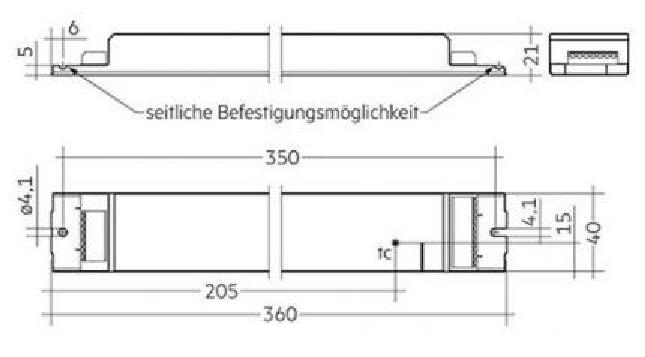

Dimensions & packaging
| EAN | 9006210623160 |
|---|---|
| Length | 360 mm |
| Width | 40 mm |
| Height | 21 mm |
| Weight | 350 g |
