Tridonic LED-driver LC 75W 250-550mA flexC lp EXC - 28001808
Tridonic GmbH & Co KG
Tridonic LED-driver LC 75W 250-550mA flexC lp EXC - 28001808
Product number:
28001808
Immediately available
€24.51
Content:
1 Stück
Prices incl. VAT plus shipping costs net €20.60
Product information "Tridonic LED-driver LC 75W 250-550mA flexC lp EXC - 28001808"
Constant current LED Driver for luminaire installation.
- For luminaires of protection class I and protection class II
- Adjustable output current between 250 and 550 mA via ready2mains Programmer or I-SELECT 2 plugs
- Max. output power 75 W
- Up to 94 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Housing properties
- Low profile metal casing with white cover
- Type of protection IP20
Interfaces
- ready2mains (configuration via mains)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2)
- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Application-oriented operating window for maximum compatibility
- Best energy savings due to high efficiency
- Flexible configuration via ready2mains and I-SELECT 2
- Reliability proven by lifetime up to 100,000 h and 5 years guarantee
Typical applications
- For linear/area lighting in office applications
Downloads & Documents
Electrical data
| output current: | 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550 |
|---|---|
| operating mode: | constant current |
Casing
| protection type: | IP20 |
|---|---|
| protection class: | I/II |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

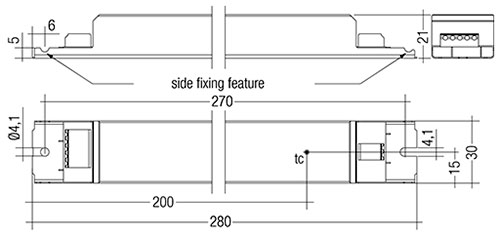

Dimensions & packaging
| EAN | 9006210621227 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 206 g |
