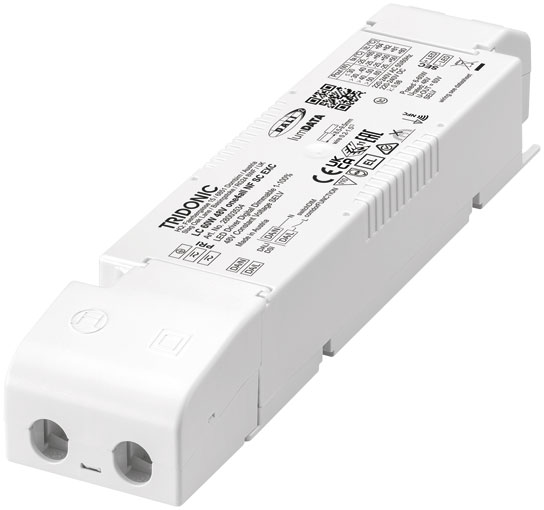

Tridonic LED-Driver LC 60W 48V one4all NF SC EXC - 28003534
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 60W 48V one4all NF SC EXC - 28003534
Product number:
28003534
Shipping in 28 day(s)
€87.11
Prices incl. VAT plus shipping costs net €73.20
Product information "Tridonic LED-Driver LC 60W 48V one4all NF SC EXC - 28003534"
Product description
- NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
- Dimmable 48 V constant voltage LED driver for flexible constant voltage strips
- Can be either used built-in or independent with clip-on strain-relief
- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
- one4all interface enables different dimming options
- Dimming range 1 to 100 %
- No additional external dimmer is needed
- Suitable for emergency escape lighting systems acc. to EN 50172
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Typical applications
- Cove lighting, facade accent lighting, ceiling integration
Technical details
- 48 V, 60 W
- Small cross section
- Push terminals for simple wiring
Interfaces
- Near field communication (NFC)
- one4all (DALI-2, DSI, switchDIM, corridorFUNCTION)
- Terminal blocks: 45° push terminals
System solution
- Tridonic LLE FLEX 8 mm 48V EXC 600, 1,200, 1,800, 2,500 lm/m
- Tridonic LLE FLEX 12 mm 48V EXC 3,000, 4,000 lm/m
- Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly
EAN/UPC: 9006210745121
Country of Origin: AT
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output voltage: | 48 |
|---|---|
| operating mode: | constant voltage |
Dimensions & packaging
| EAN | 9006210745121 |
|---|
