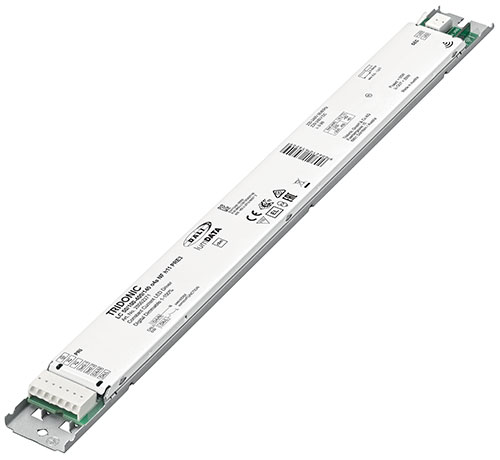

Tridonic LED driver LC 50/100-400/140 o4a NF h11 PRE3 - 28002371
Tridonic GmbH & Co KG
Tridonic LED driver LC 50/100-400/140 o4a NF h11 PRE3 - 28002371
Product number:
28002371
Immediately available
€56.33
Content:
1 Stück
Prices incl. VAT plus shipping costs net €47.34
Product information "Tridonic LED driver LC 50/100-400/140 o4a NF h11 PRE3 - 28002371"
Dimmable built-in constant current LED Driver.
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED Driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Adjustable output current between 100 and 400 mA via NFC, DALI, I-SELECT 2 Plugs or ready2mains
- Max. output power 50 W
- Up to 90 % efficiency
- Power input on stand-by < 0.15 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Housing properties
- Low profile metal casing with white cover
- Only 11 mm housing height
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
- ready2mains (configuration and dimming via mains)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains) or with resistor plug (I-SELECT 2)
- Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
- Constant light output function (CLO)
- Power-up fading at AC
- Configurable via ready2mains
- Switch off the Driver with fade2zero
- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
- Reliability proven by lifetime up to 100,000 h and 5 years guarantee
Typical applications
- For linear/area lighting in office applications
Downloads & Documents
Electrical data
| output current: | 100, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400 |
|---|---|
| operating mode: | constant current |
| lifetime: | 100000 h |
Casing
| form type: | linear |
|---|---|
| protection type: | IP20 |
| protection class: | I/II |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|---|
| interface: | switchDIM |
Logistic data
| item category: | LED drivers |
|---|

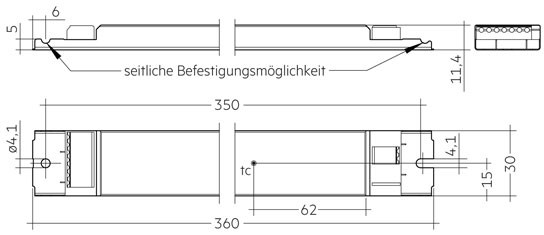

Dimensions & packaging
| EAN | 9006210658209 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 114 mm |
| Weight | 188 g |
