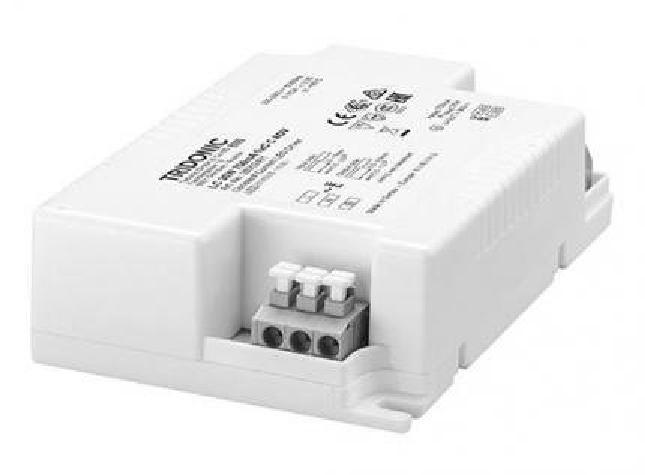

Tridonic LED-Driver LC 40W 900mA fixC C ADV - 28002493
Tridonic LED-Driver LC 40W 900mA fixC C ADV - 28002493
Immediately available
That's why you should buy this product now
- High Quality at a low price
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
€15.05
Prices incl. VAT plus shipping costs net €12.65
Product information "Tridonic LED-Driver LC 40W 900mA fixC C ADV - 28002493"
LED ECG for luminaire installation with 40.5 W
The fixed output constant current LED driver LC 40W 900mA fixC C ADV from the ADVCANCED series from Tridonic is suitable for installation in luminaires of protection class I and II. It has a maximum output power of 40.5 watts at an output current of 900 mA.
The housing is made of white polycarbonate and IP20 protected.
Temperature / overload / short circuit protection
The LED ECG has a temperature protection according to EN 61347-2-13 C5e. In addition, it is protected against overload, short circuits and no load, as well as against burst voltage 1 kV, surge voltage 1 kV (L to N) and surge voltage 2 kV (L/N to earth).
The nominal life is up to 50,000 hours. Tridonic offers a 5 year warranty on the LED driver.
Downloads & Documents
Datenblatt-Tridonic-LED-Treiber-LC-40W-900mA-fixC-SC-ADV-28002493_1592161213_2
Datasheet-Tridonic-LED-Driver-LC-40W-900mA-fixC-SC-ADV-28002493_1592161201_4
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-40W-900mA-fixC-SC-ADV-28002493_1592161201_5
Login
Electrical data
| output current: | 900 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

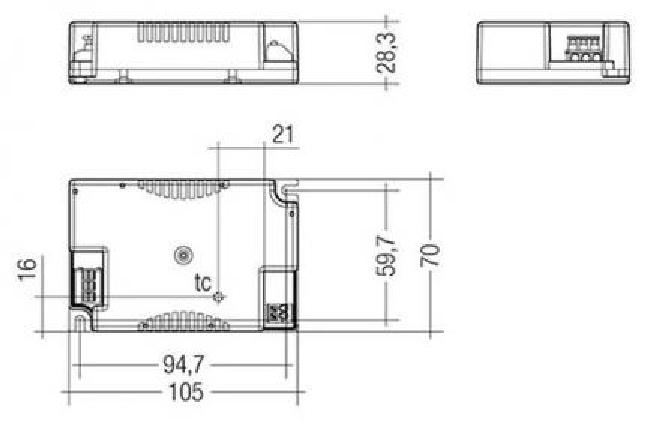

Dimensions & packaging
| EAN | 9006210674698 |
|---|---|
| Length | 105 mm |
| Width | 70 mm |
| Height | 28 mm |
