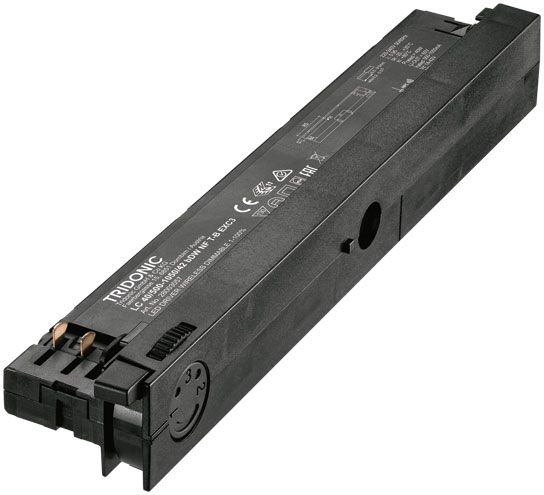

Tridonic LED-Driver LC 40W 500-1050mA bDW NFC T EXC3 - 28003057
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 40W 500-1050mA bDW NFC T EXC3 - 28003057
Product number:
28003057
Immediately available
€94.80
Prices incl. VAT plus shipping costs net €79.66
Product information "Tridonic LED-Driver LC 40W 500-1050mA bDW NFC T EXC3 - 28003057"
- Can be integrated into Casambi systems (Casambi Ready)
- Dimmable constant current / track LED driver
- Optional accessory ACU ALU NIPPLE M10x1 for fixing the luminaire head
- Compatible track 3-phase system, see data sheet chapter 3.8
- Automatically sets up a wireless communication network with up to 250 nodes
- Dimming range from 1 - 100 % (min. 5 mA)
- For protection class II luminaires
- Temperature protection in accordance with EN 61347-2-13 C5e
- Output current adjustable between 500 - 1,050 mA via near-field communication (NFC)
- Max. Output power 40 W
- Up to 85 % efficiency
- Power consumption in stand-by < 0.5 W
- Nominal service life up to 100,000 h
- 5-year guarantee (see https://www.tridonic.com/herstellergarantiebedingungen for conditions)
Downloads & Documents
Electrical data
| output current: | 500, 600, 700, 800, 900, 1050 |
|---|---|
| operating mode: | constant current |
