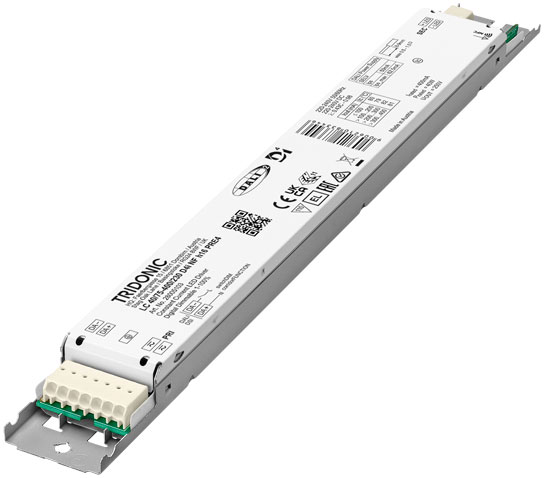

Tridonic LED-Driver LC 40/75-400/230 D4i NF h16 PRE4 - 28005103
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 40/75-400/230 D4i NF h16 PRE4 - 28005103
Product number:
28005103
Shipping in 14 day(s)
€49.19
Prices incl. VAT plus shipping costs net €41.34
Product information "Tridonic LED-Driver LC 40/75-400/230 D4i NF h16 PRE4 - 28005103"
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Adjustable output current between 75 and 400 mA
- Max. output power 40 W
- Up to 92.4 % efficiency
- Power input on stand-by < 0.15 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)

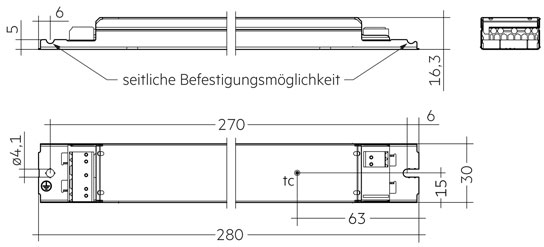

Housing properties
- Low profile metal casing with white cover
- Only 16 mm housing height
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC, DALI)
- Fulfills DALI-2 parts: 250 (Integrated bus power supply), 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
- Constant light output function (CLO)
- Power-up fading at AC
- Switch off the driver with fade2zero
- Protective features (overtemperature, short-circuit, overload, no-load)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE
- Support NFC multiple programming (full carton box)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
- Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Typical applications
- For linear/area lighting in office applications
EAN/UPC: 9006210833446
Country of Origin: AT
Customs tariff No.: 85044095
