Tridonic LED-Driver LC 35W 24V SC SNC - 87500852
No longer available
For an alternative please contact us!
Alternative Products
Immediately available
€22.28
Prices incl. VAT plus shipping costs net €18.72
Alternative Products
Immediately available
Product information "Tridonic LED-Driver LC 35W 24V SC SNC - 87500852"
- Constant voltage LED driver
- Output voltage 24 V
- Max. output power 35 W
- Dimmable via external PWM LED dimmers attached on output side
- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
- Cove lighting, facade accent lighting, ceiling integration, refrigerated displays
- 24 V, 35 W

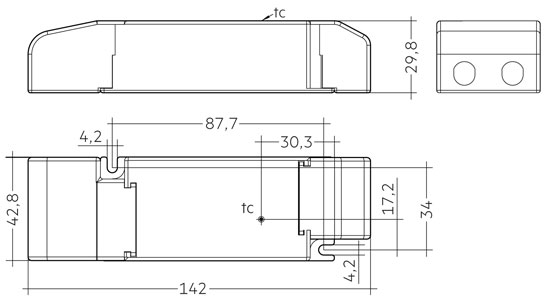

- Small design (142 x 43 x 30 mm) with stretched-compact strain relief
- Output LF voltage ripple (< 120 Hz) ± 1.5 %
- Small cross section
- Push terminals for simple wiring
- Tridonic LLE-FLEX ADV G2 600, 1,200, 1,800 lm/m
- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
- In connection with Flex accessories wire to PCB plug
Downloads & Documents
Electrical data
| output voltage: | 24 |
|---|---|
| operating mode: | constant voltage |
Dimensions & packaging
