Tridonic LED-Driver LC 18W 24V lp SNC - 87500938
Product information "Tridonic LED-Driver LC 18W 24V lp SNC - 87500938"
Product description
- Constant voltage LED driver
- Output voltage 24 V
- Max. output power 18 W
- Dimmable via external PWM LED dimmers attached on output side
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Typical applications
- Cove lighting, facade accent lighting, ceiling integration
Technical details
- 24 V, 18 W
- Output LF voltage ripple (< 120 Hz) ± 1.5 %
- Small cross section
- Push terminals for simple wiring
System solution
- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
- Tridonic LLE-FLEX ADV G2 600, 1,200, 1,800 lm/m
- Tridonic LLE-FLEX SNC 600, 1,200, 1,800 lm/m
- In connection with Flex accessories wire to PCB plug
EAN/UPC: 9006210747606
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output voltage: | 24 |
|---|---|
| operating mode: | constant voltage |

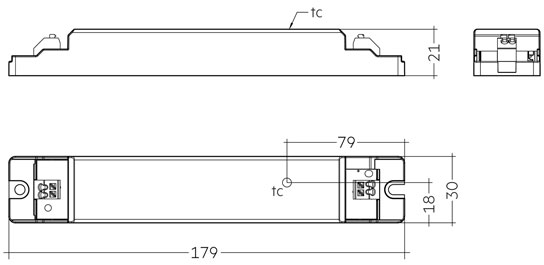

Dimensions & packaging
