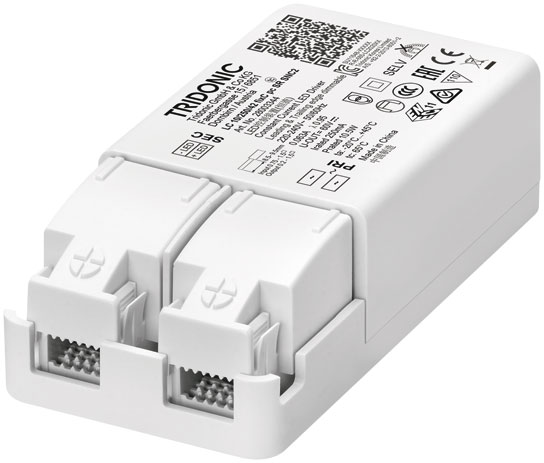

Tridonic LED-Driver LC 10W 250mA fixC pc SR SNC2 - 28003344
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 10W 250mA fixC pc SR SNC2 - 28003344
Product number:
28003344
Shipping in 28 day(s)
€11.26
Prices incl. VAT plus shipping costs net €9.46
Product information "Tridonic LED-Driver LC 10W 250mA fixC pc SR SNC2 - 28003344"
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Trailing edge is a benefit in terms of noise compared to leading edge
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 10.5 W
- Output current 250 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
- Push-in terminals
- 2 separate strain relief parts for input and output cables with highly robust clamps
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- No output current overshoot at mains on/off
EAN/UPC: 9006210745572
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 250 |
|---|---|
| operating mode: | constant current |
